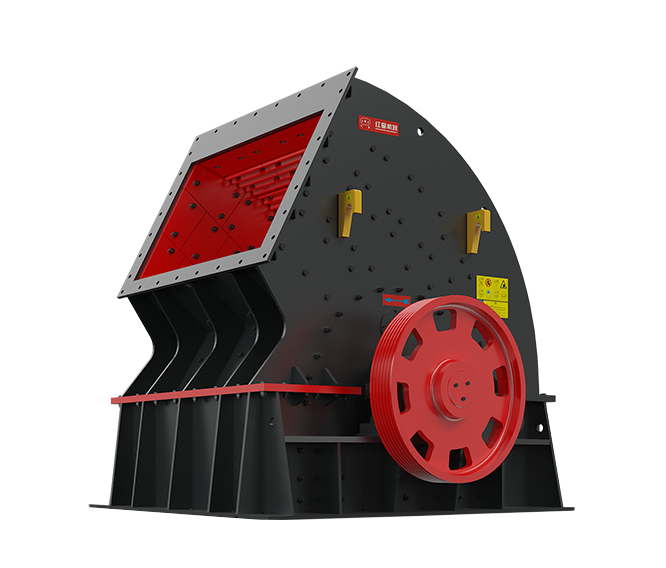

PCZ Heavy Hammer Crusher

PCZ Heavy Hammer Crusher

Application fields: mine, metallurgy, building material, highway, railway, water conservancy and chemical industry

  • Processing capacity:100-3200t/h
  • Max.Feeding size:600-1700mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

PCZ heavy hammer crusher can crush stone and form once, without secondary crushing and shaping process, which can reduce the cost by about 40%, energy consumption, and investment. It is especially suitable for crushing limestone and stone with a compressive strength of less than 200MPa.

PCZ heavy hammer crusher applications and applicable materials

PCZ Heavy Hammer Crusher Features:

  1. 1. The PCZ heavy hammer crusher uses an external lubrication system including an oil pump, a fuel tank, and a pipeline. When the oil temperature is too high or the oil flow rate is too slow, the crusher will be automatically turned off.

  2. 2. Modular design, through the replacement of the cavity type, can achieve coarse, medium and fine crushing conversion, improve production efficiency

  3. 3. It adopts high-quality high-manganese steel and undergoes a strict process of heat treatment to obtain a single austenite structure. The service life is increased by more than five times compared with the original products such as manganese steel and rail, and the working efficiency is increased by more than 30%.

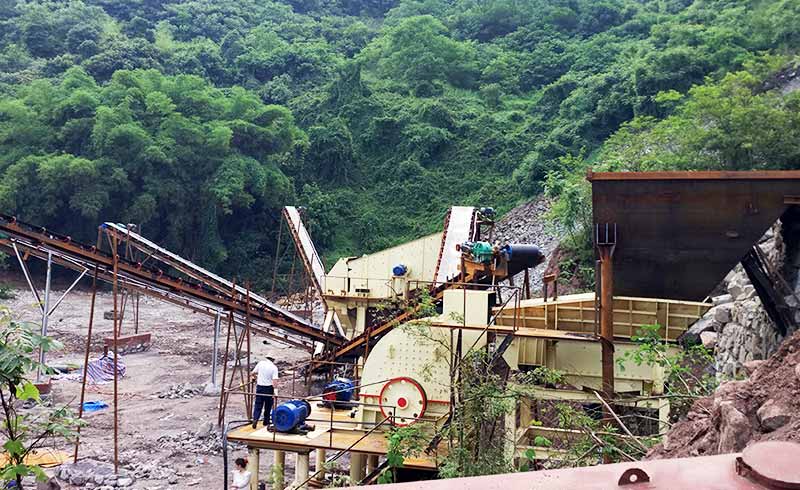

PCZ heavy hammer crusher production site

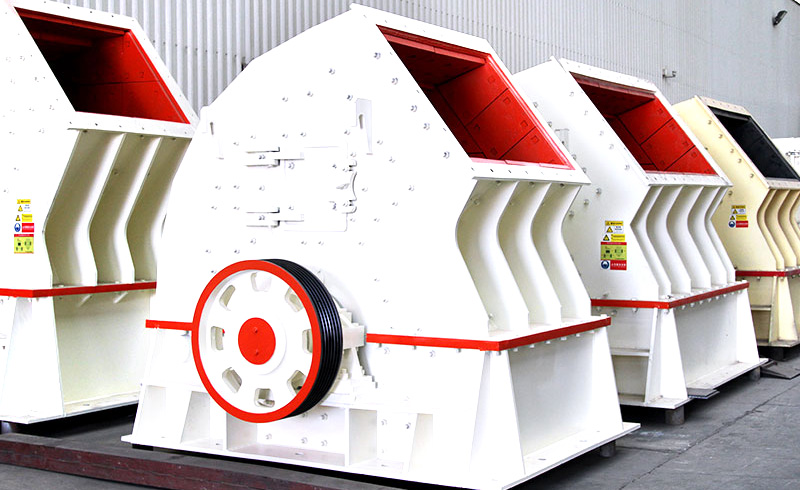

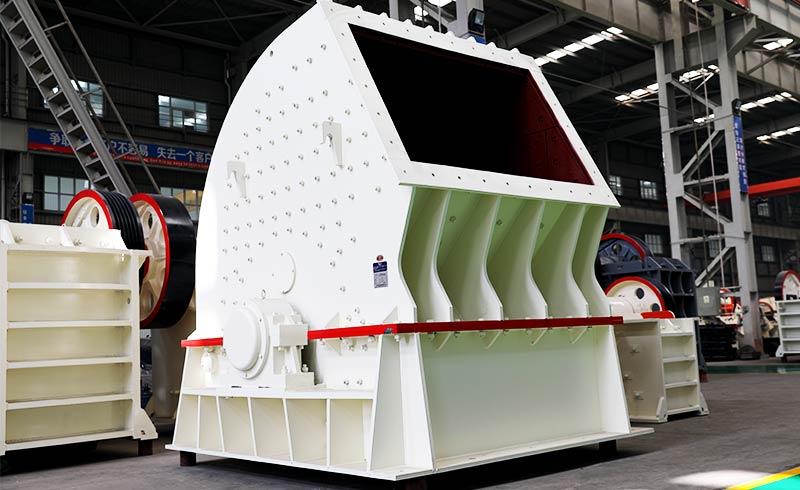

PCZ heavy hammer crusher
hammer crushers
Product
presentation

Product Price

There is a big difference in the price of PCZ heavy hammer crusher counterattack on the market. The main reasons are as follows: 1. The manufacturing costs of manpower, material resources and financial resources invested by different manufacturers are different. 2. The level of consumption strength and economic development of different manufacturers is different.

How much is the Hongxing PCZ heavy hammer crusher hitting the price? If you would like more information, please feel free to contact the online service.

Technical data

  • PCZ Heavy Hammer Crusher
Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×790 910×890 ≤400 100-160 132 2880×2130×2390
PCZ1410 1400×1000 1020×750 ≤500 180-230 4P   160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤600 260-350 132×2 3370×2415×2750
PCZ1615 1600×1500 1400×1000 ≤600 380-550 200×2 3370×2925×2750
PCZ1716 1700×1600 1640×1300 ≤650 600-850 250×2 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤650 700-1000 400×2 3670×3390×3330
PCZ1920 1900×2000 1850×1600 ≤800 900-1500 500×2 3729×3300×4450
PCZ2225 2200×2500 2100×2300 ≤1200 1500-3000 1250 4620×5380×4780
  • PCZ Heavy Hammer Crusher
Model Feeding size
   (mm)
Capacity
  (t/h)
PCZ1310 ≤400 100-160
PCZ1410 ≤500 180-230
PCZ1610 ≤600 260-350
PCZ1615 ≤600 380-550
PCZ1716 ≤650 600-850
PCZ1720 ≤650 700-1000
PCZ1900 ≤800 900-1500
PCZ2225 ≤1200 1500-3000

For customization, please contact us.
