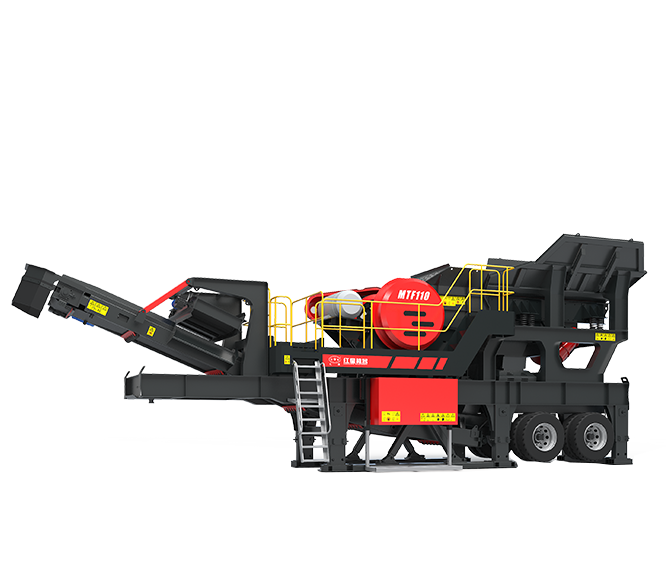

Mobile Crushing Station

Mobile Crushing Station

Applied materials: limestone, granite, basalt, quartz, rock, coal, iron ore, gold ore, marble, construction waste, etc.

  • Feeding size: 500-800 mm
  • Output size: 65-200 mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

There are two main types of mobile crushers: the crawler mobile crusher and the wheeled mobile crusher, including the mobile jaw crusher, mobile impact crusher, mobile cone crusher, etc.

Mobile crusher can be used to crush cement, limestone, granite, basalt, aggregate, calcite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon. It is widely used in mining, quarry, road (railway) and bridge construction, urban construction waste disposal and other fields.

mobile crushing station applications and applicable materials

Mobile Crushing Station Features:

  1. 1. The chassis adopts steel ship structure with high strength and it is highly adaptable to different working sites.

  2. 2. The well-known brand motor achieves the good performance of the power system, with features of low noise and energy saving, etc.

  3. 3. According to different requirements of customers, we can provide different crushing and screening equipment and combined types of optimum design, and we fully guarantee the quality.

  4. 4. The generator set can be equipped, in order to work normally under complex situations, such as the situation of no power or sudden power off, ensuring continuous operation and reducing unnecessary loss.

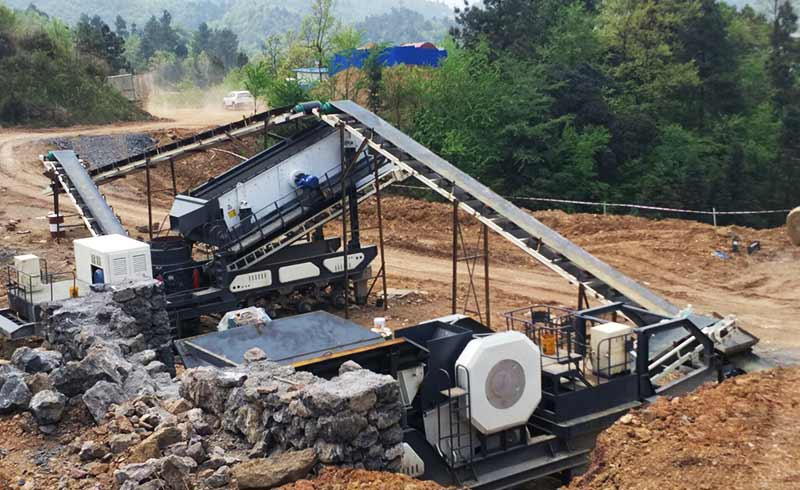

mobile crushing station production site

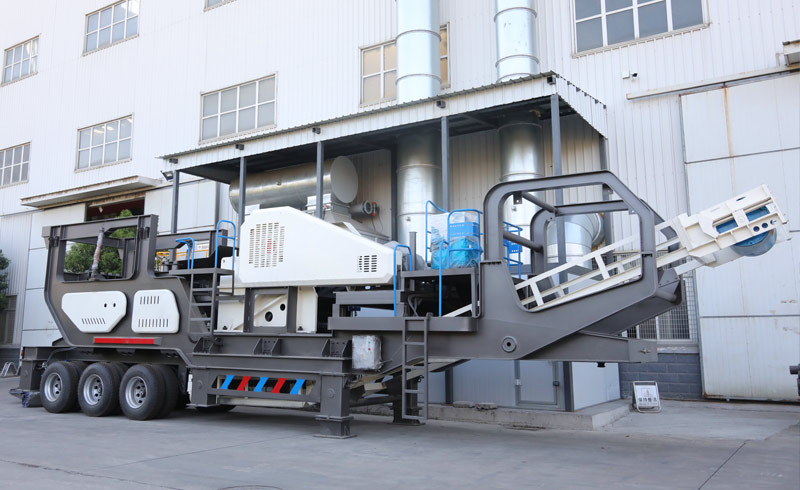

mobile crushing station

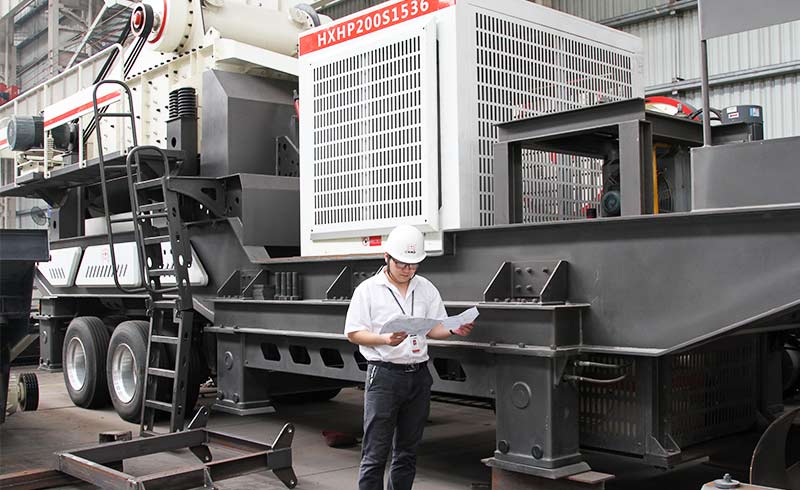

engineer testing machine
Product
presentation

Our Advantages

The company mainly produces five series of products, including crushing equipment, sand making equipment, mineral processing equipment, milling equipment, and building materials equipment. At the same time, the company can provide customers with project design, process design, and other related services. The company has rapidly grown into a high-end mining machinery production and export base in China with scientific management methods, refined manufacturing processes, and innovative ideas.

Mobile crushing stations play a very important role in the metallurgical, chemical, building materials, and other industries. The indicators and parameters of Hongxing mobile crushing stations are strictly controlled by national standards.

If you need our latest offer, you can tell us your specific type and quantity after determining its size. Then we will send you the price. You can also contact us at info@hxjq.com.

Technical data

  • Mobile Jaw Crusher
Model HX938HD86 HX1149HD98 HX1349HD110 HX1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
  • Mobile Jaw Crusher

Model HX938HD86 and HX1149HD98

Model HX938HD86 HX1149HD98
Transportation lenght(mm) 12600 13500
Transportation Width(mm) 2600 2700
Transportation Height(mm) 3870 4200
Maximum Lenght(mm) 12500 14000
Maximum Width(mm) 4100 4500
Maximum Height(mm) 4100 4900
Weight(t) 39 57
tIRE Configuration Dualaxial Dualaxial
Jaw Crusher HD86 HD98
Maximum Feeding Size(mm) 500 550
Discharge opening range 50-150 75-175
Capacity(t/h) 85-275 110-350
Vibrating Feeder ZSW380×95 ZSW420×110
Main Belt Conveyor B800×8.5m B1000×9.5m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m
Gensrt(optional) 200KW 250KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10

Model HX1349HD110 and HX1349HD125

Model HX1349HD110 HX1349HD125
Transportation lenght(mm) 14500 15200
Transportation Width(mm) 2800 2900
Transportation Height(mm) 4450 4500
Maximum Lenght(mm) 16100 16700
Maximum Width(mm) 5100 5100
Maximum Height(mm) 5000 5300
Weight(t) 55 65
Tire Configuration Dualaxial Dualaxial
Jaw Crusher HD110 HD125
Maximum Feeding Size(mm) 660 800
Discharge opening range 100-200 125-225
Capacity(t/h) 215-510 280-650
Vibrating Feeder ZSW490×130 ZSW490×130
Main Belt Conveyor B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 270KW 400KW
Iron separator(optional) RCYD(C)-10 RCYD(C)-12

For customization, please contact us.
