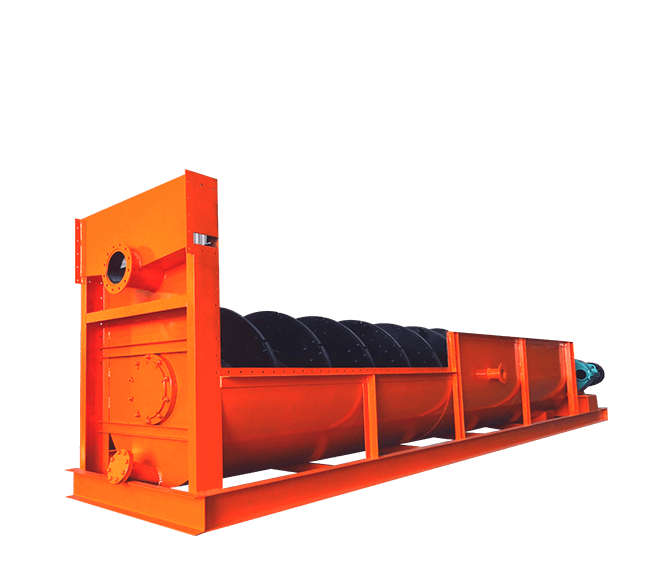

Spiral Separator

Spiral Separator

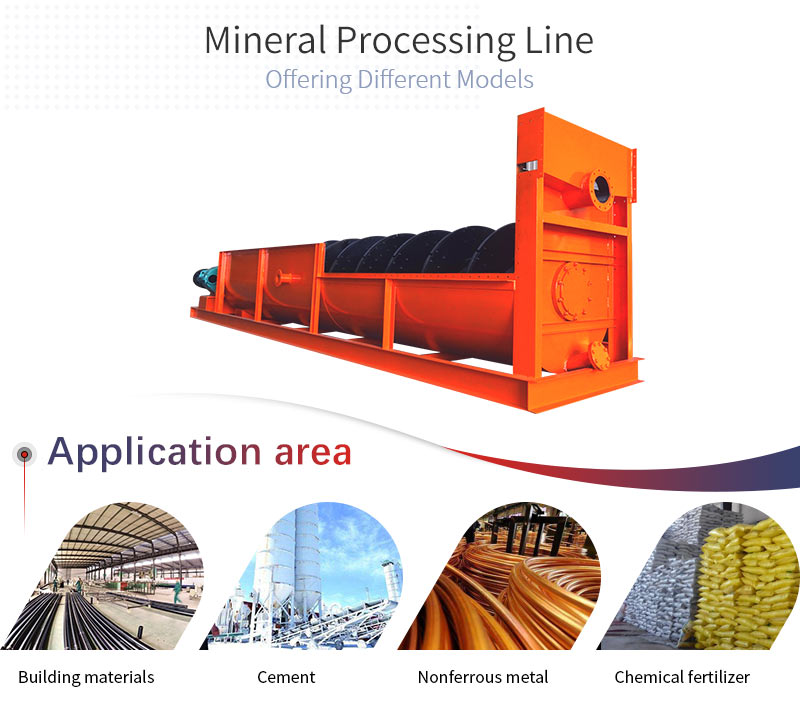

Application fields: cement, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressing and other industries.

  • Spiral diameter: 300-3000 mm
  • Total weight: 0.7-84.8 t

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

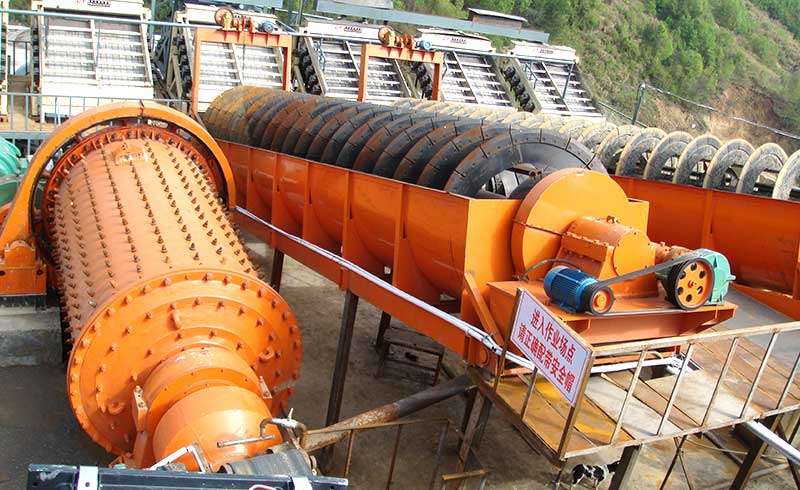

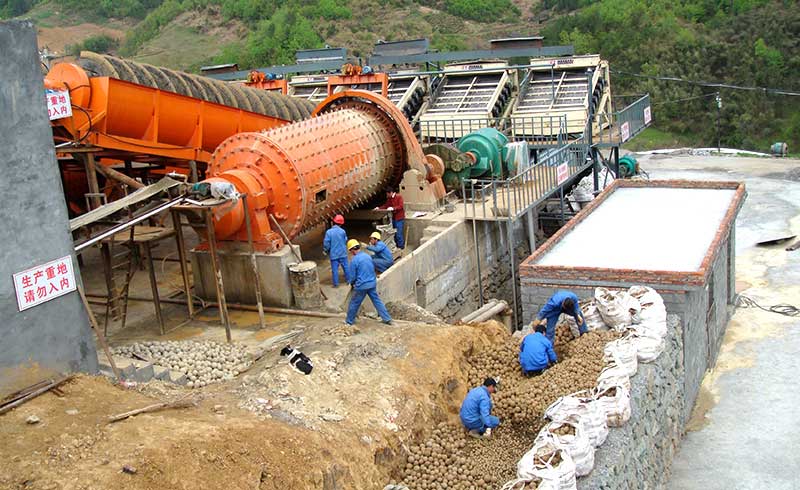

The spiral separator is a piece of important beneficiation equipment in mineral processing. The spiral separator is applied for iron, tin, tungsten, tantalum, niobium, gold, coal, zircon and other metal, nonmetal minerals with the gravity dispersion of granularity ranging from 0.02 to 0.3mm. It is used for separating the sand in the ore beneficiation plant by being equipped with a ball mill to form a closed cycle, for classifying ore sand and fine silt in the gravity separation plant, for the granularity classification of the pulp in the metal ore beneficiation flow and for removing the slime and water in the ore washing process.

spiral separtor application and applicable materials

Spiral Separator Features:

  1. 1. Simple structure and convenient installation.

  2. 2. Small footprint, easy to operate.

  3. 3.Large processing capacity, high efficiency, reliable operation.

  4. 4. Lightweight, low noise, resistance to moisture, rust, and corrosion.

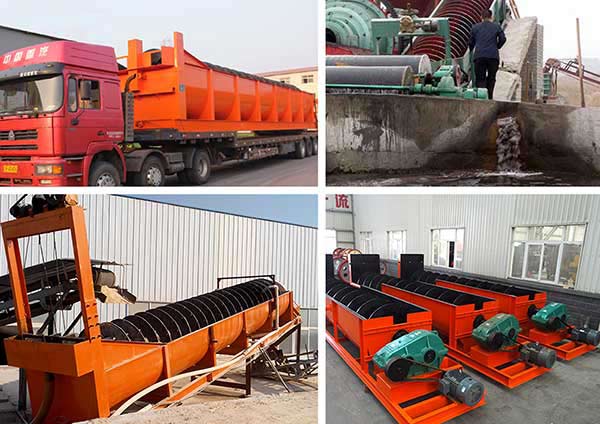

various and spot products
professional after-sales service

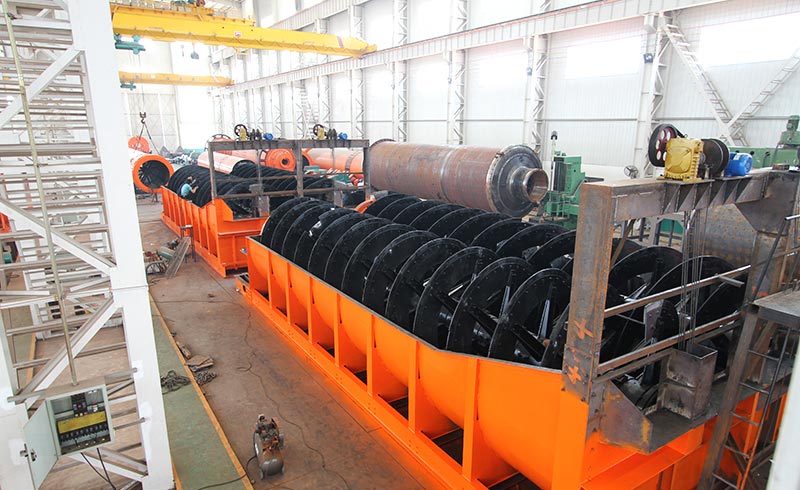

customers visit our factory
Product
presentation

Why Choose Our Products

Nearly 40 years of industry experience, quality assurance, tens of millions of customers' common choice.

Factory direct sales: promise 100% ex-factory price, free inspection test machine.

Provide solutions for customers: provide the right products according to customer needs.

Perfect after-sales: on-site inspection, expert after-sales.

Technical data

  • Spiral Separator
Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
  • Spiral Separator
Model Spiral
Diameter
(mm)
Spiral
rotate
speed
(r/min)
FG-3 300 12-30
FG-5 500 8-12.5
FG-7 750 6-10
FG-10 1000 5-8
FC-10
FG-12 1200 4-6
FC-12
2FG-12
2FC-12
FG-15 1500 4-6
FC-15
2FG-15
2FC-15
FG-20 2000 3.6-5.5
FC-20
2FG-20
2FC-20
FG-24 2400 3.67
FC-24
2FG-24
2FC-24
2FG-30 3000 3.2
2FC-30

For customization, please contact us.
