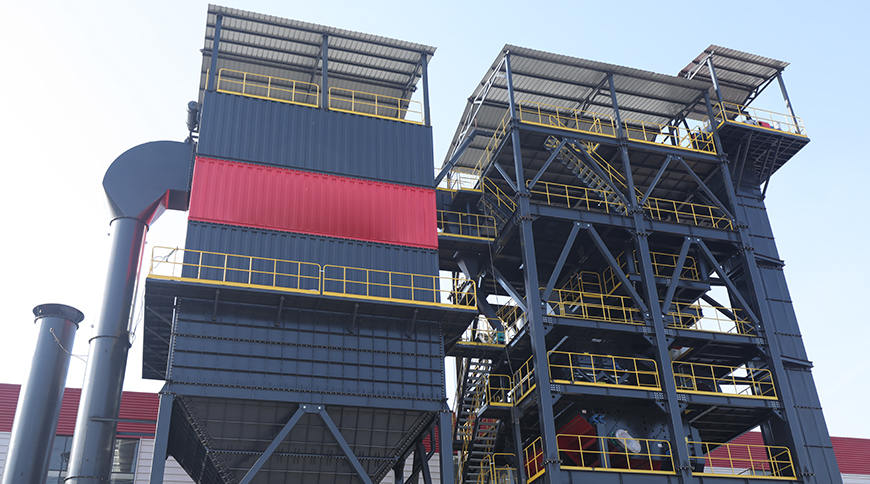

S7 Tower Type Dry Sand Making Equipment Produce

Application fields: Used in mining, building materials, transportation, energy, chemical and other industries.

Processing capacity: 60-300t/h
Output of manufactured sand:3-15%

“40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Equipment Introduction

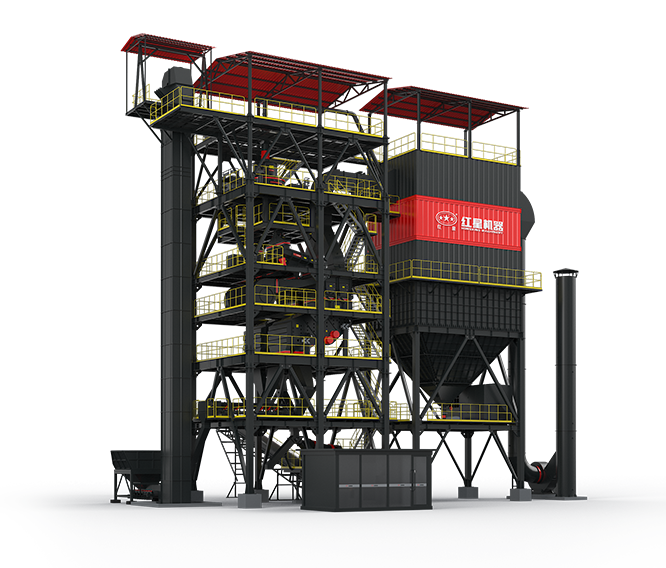

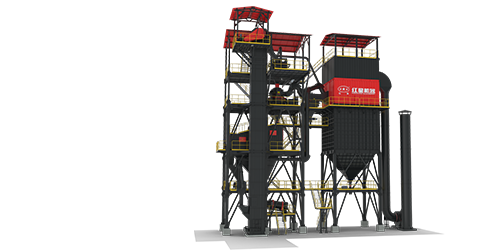

S7 Tower Type Dry Sand Making Equipment Produce Features:

S7 tower type dry sand making equipment is used to produce high-quality artificial sand by using air separation and screening technology,and the fineness modulus of the finished product is adjustable from 2.2 to 3.2 : powder content is Adjustable;The discharge particle size is optional and suitable for various working conditions,especially for products with high aggregate requirements such as dry powder mortar,high-grade concrete,asphalt,etc.

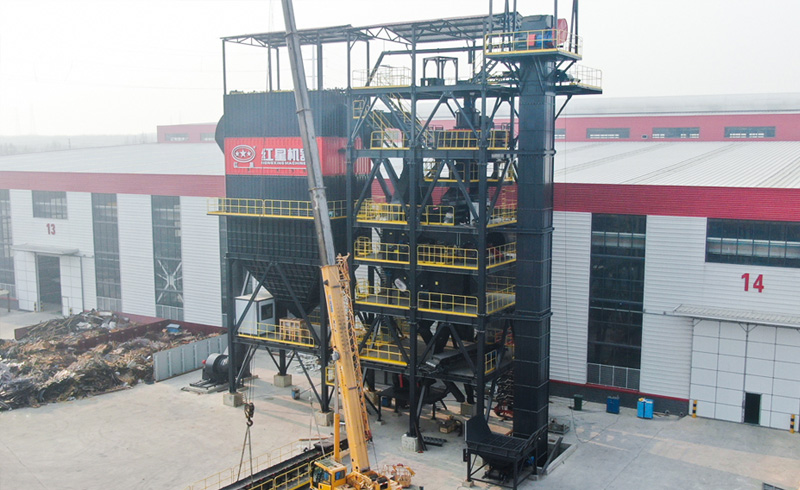

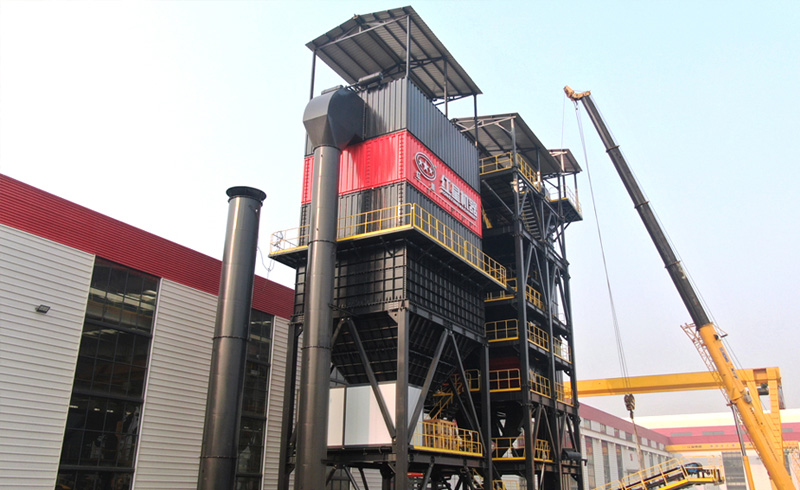

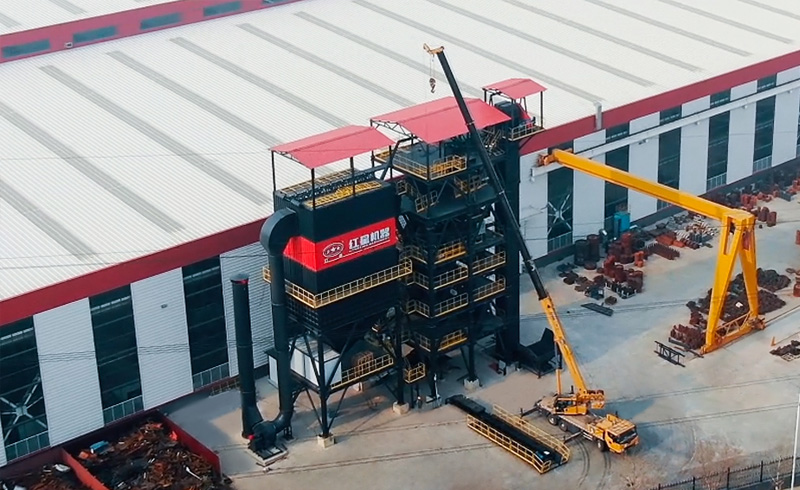

Product
presentation

Technical data

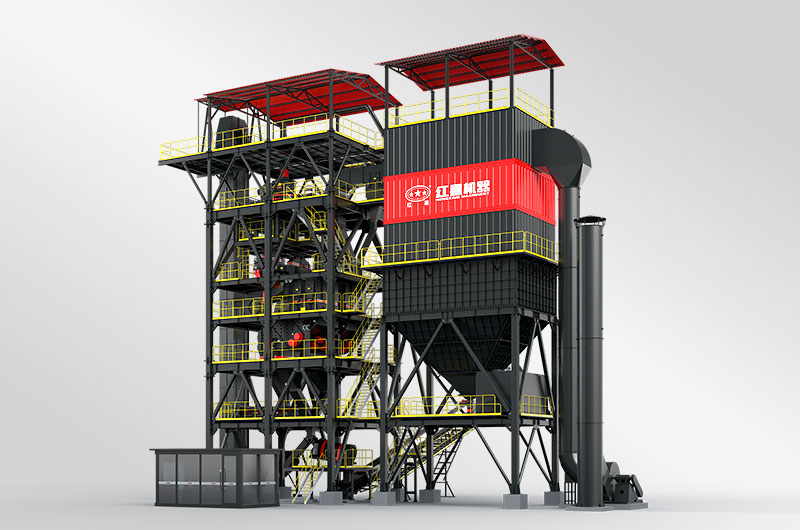

S7 Dry Process Premium Sand Making Tower

Model	Input size（mm）	Capacity（t/h）	Power（KW）	Overall dimension L×W×H （M）
S7-60	0-15	60	490	26×6×25
S7-100	0-15	100	750	30×9×27
S7-150	0-15	150	1000	30×9×30
S7-200	0-15	200	1200	30×12×30
S7-300	0-15	300	2000	30×20×30
S7-600	0-15	600	4000	30×40×30

Raw material moisture content: mud content of feeding <1%, water content <2%

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

S7 Dry Process Premium Sand Making Tower

Model	Input size（mm）	Capacity（t/h）	Power（KW）
S7-60	0-15	60	490
S7-100	0-15	100	750
S7-150	0-15	150	1000
S7-200	0-15	200	1200
S7-300	0-15	300	2000
S7-600	0-15	600	4000

Raw material moisture content: mud content of feeding <1%, water content <2%

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
