Trommel Screen

Trommel Screen

Applicable materials: classification and separation of blocks such as clay, stone powder, sandstone, lump coal and coal powder.

  • Production capacity:12-350 m³/h
  • Power:5.5-18.5kw

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Trommel screens are often used for the classification of powdered materials in mining, construction, chemistry, energy, and other fields. It is often used in refractory materials, coal, river sand classification, gravel block classification device.

Trommel Screen Features:

  1. The trommel screen is often used for the classification of powdery materials, the screening effect is good, the sieve holes are not easy to block

  2. Stable operation, low noise, great safety, and high productivity

  3. The structure is simple, the maintenance is convenient, providing a greater return on your investment

  4. The special screen is used for higher screening efficiency and longer service life

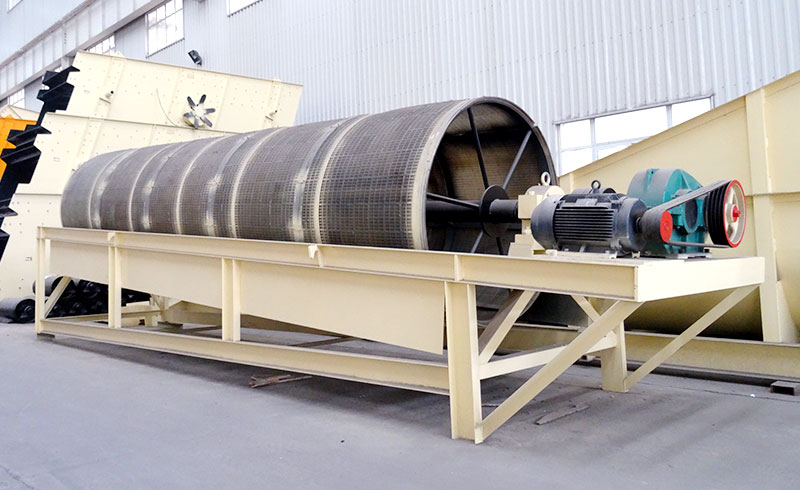

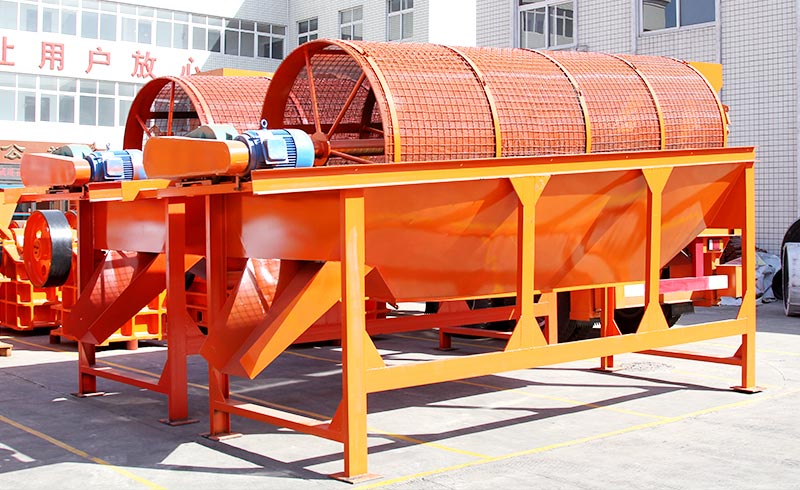

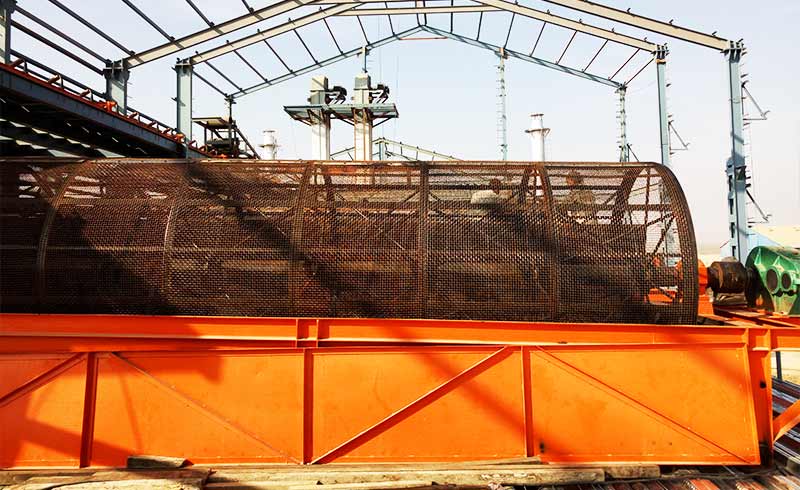

Product
presentation

Why Choose Our Products

Hongxing machines are dedicated to building crushing, industrial milling, ore processing, and green building materials, and provide intelligent solutions. The company has introduced advanced technologies and processes from the United States, Germany, Japan, Australia, and other countries. With scientific management methods, the manufacturing process of excellence, and the innovative manufacturing concept, it has rapidly grown into a mining machinery production and export factory in China.

Technical data

  • Trommel Screen
Model Yield(m³/h) Power
(kw)
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 12 100 5.5
YTS1240 14 120 5.5
YTS1250 15 140 5.5
YTS1530 18 150 5.5
YTS1540 18 150 7.5
YTS1550 20 180 11
YTS1560 22 200 11
YTS2040 25 250 15
YTS2050 30 300 15
YTS2060 35 350 18.5
  • Trommel Screen
Model
Yield(m³/h)
Power
(kw)
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 12 100 5.5
YTS1240 14 120 5.5
YTS1250 15 140 5.5
YTS1530 18 150 5.5
YTS1540 18 150 7.5
YTS1550 20 180 11
YTS1560 22 200 11
YTS2040 25 250 15
YTS2050 30 300 15
YTS2060 35 350 18.5

For customization, please contact us.

Application fields:

cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.
