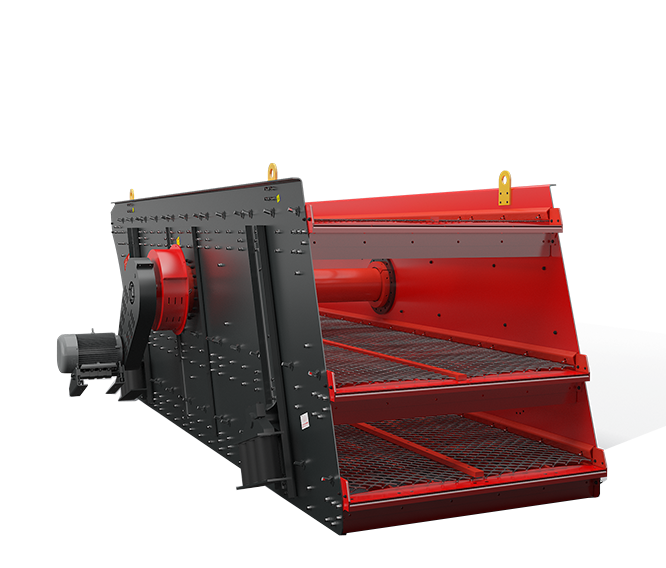

YK Series Vibrating Screen

YK Series Vibrating Screen

Processing capacity:8-800m³/h

  • Max. feeding size:400mm
  • Applied materials: limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum ore, pebbles, rock.

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Vibrating screen has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair, and safe operation,

which can screen stone for quarry, and it can also be used for product classification in mineral processing, building materials, electric power, and chemical industry.

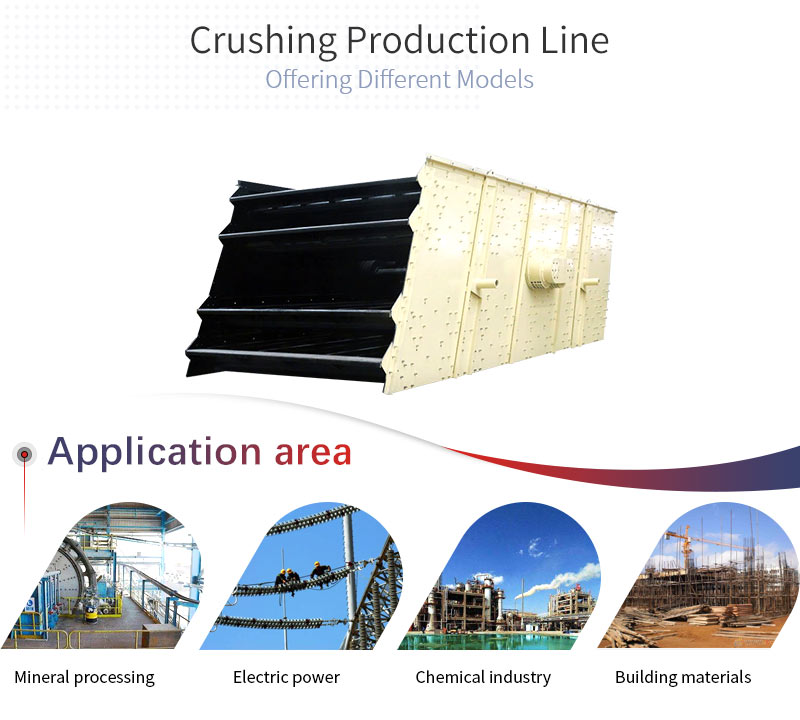

YK series vibrating screen applications and applicable materials

YK Series Vibrating Screen Features:

  1. 1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole so that the circular vibrating screen has high screening efficiency and production efficiency.

  2. 2. The circular vibrating screen has a simple structure and the dismantling and changing of the screen surface are convenient.

  3. 3. The electricity consumed to screen every ton of materials is low.

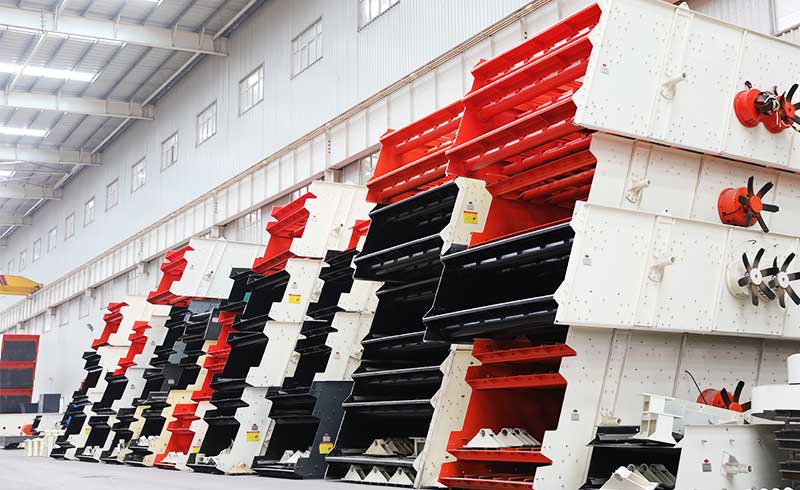

YK series vibrating screen production site

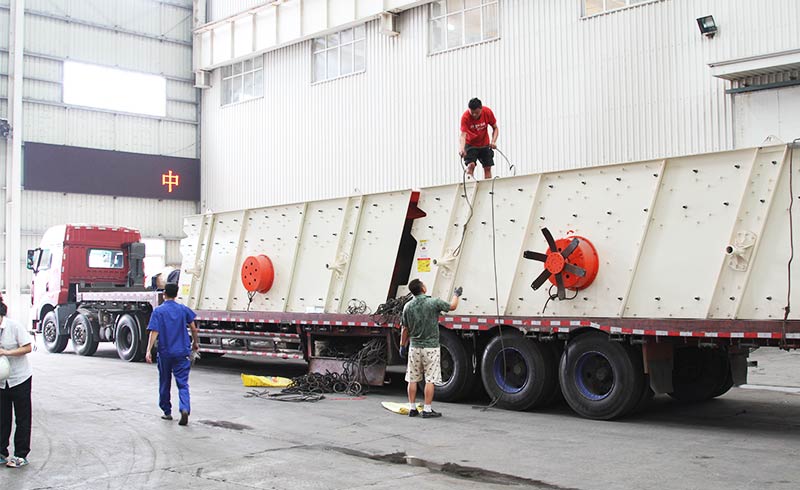

YK series vibrating screen delivery
the company produces a variety of models, if you need to customize, please contact us.
Product
presentation

Why Choose Our Products

Nearly 40 years of mining equipment technology and experience make the vibrating screen a simple, rational and compact structure. Rigorous quality management guarantees the superior quality of each machine.

The machine is sold to more than 120 countries and regions around the world. Such as Zimbabwe, Ethiopia, Zambia, Guinea, Kenya, Algeria, Egypt, Saudi Arabia, Kazakhstan, Turkey, Oman, Azerbaijan, India, Nepal, the Philippines, Pakistan, Malaysia, Canada, Austria, Italy, Papua New Guinea, New Zealand, Mexico, Brazil, and other countries.

We guarantee 100% ex-factory price and provide customers with satisfactory products. Welcome to consult.

Technical data

  • YK Series Vibrating Screen
Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 200 8-60 800-970 8 6P   5.5KW 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 200 10-70 800-970 8 6P   5.5KW 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 200 12-78 800-970 8 6P   7.5KW 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 200 13-80 800-970 8 6P   7.5KW 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 200 15-86 800-970 8 6P   7.5KW 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 200 16-90 800-970 8 6P   7.5KW 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 200 20-125 800-970 8 6P   11KW 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 200 21-125 800-970 8 6P   11KW 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 200 22-150 800-970 8 6P   11KW 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 200 22-150 800-970 8 6P   15KW 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 200 22-155 800-970 8 6P   15KW 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 200 22.5-162 800-970 8 6P   11KW 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 200 22.5-162 800-970 11 6P   15KW 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 200 22.5-162 800-970 8 6P   18.5KW 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 200 25-206 750 8 6P  18.5KW 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 200 32-276 750 8 6P   18.5KW 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 200 32-285 750 8 6P   22KW 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 200 32-336 800-970 8 6P  22KW 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 200 50-475 970 8 6P   30KW 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 200 50-475 970 8 6P  30KW 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 200 50-497 970 8 6P   37KW 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 200 65-550 970 8 6P   30KW 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 200 70-620 970 8 6P   37KW 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 200 80-680 970 8 6P   45KW 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 200 120-680 750 8 8P   22×2KW 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 200 180-720 750 8 8P   22×2KW 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 200 200-700 750 8 8P   22×2KW 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 200 230-800 750 8 8P   22×2KW 20 3000×7200 8000×4520×2300



  • YK Series Vibrating Screen
Model Max. feeding
size (mm)
Processing
 capacity
(m³/h)
2YK1225 200 8-60
3YK1225 200 10-70
2YK1230 200 12-78
3YK1230 200 13-80
2YK1237 200 15-86
3YK1237 200 16-90
2YK1535 200 20-125
3YK1535 200 21-125
2YK1545 200 22-150
3YK1545 200 22-150
4YK1545 200 22-155
2YK1548 200 22.5-162
3YK1548 200 22.5-162
4YK1548 200 22.5-162
2YK1848 200 25-206
3YK1848 200 32-276
4YK1848 200 32-285
2YK1854 200 32-312
3YK1854 200 32-312
4YK1854 200 32-336
2YK2160 200 50-475
3YK2160 200 50-475
4YK2160 200 50-497
2YK2460 200 65-550
3YK2460 200 70-620
4YK2460 200 80-680
2YK2870 200 120-680
3YK2870 200 180-720
2YK3072 200 200-700
3YK3072 200 230-800

For customization, please contact us.

more

Vibrating Feeder

Unique Design Stable Vibration Stable Operation Little Noise
Vibrating Feeder
more

Crushing and screening

Better Adaptability High Efficiency Low Transport Cost High Productivity
Crushing and screening
more

Sand Screening Machine

Long Service Life Strong Vibration Force High Screening Efficiency Low Noise
Sand Screening Machine

SOLUTION

Flotation Separation Process

Flotation Separation Process

Flotation separation process is mainly used to select metal minerals such as gold, silver, copper, iron, lead, zinc, aluminum, nickel and molybdenum. Can also be used for the selection of ferrous and non-metallic.

MORE +
Ore Beneficiation Plant

Ore Beneficiation Plant

Ore beneficiation plant what is the design process? Henan Hongxing Mining Machinery Co., Ltd. has provided professional and high-quality services to hundreds of customers with advanced processing equipment and strong technical force. Won the praise of customers.

MORE +
Powder Grinding Production Line

Powder Grinding Production Line

The development of the powder grinding production line is based on the actual situation of the user for many years, absorbing the latest grinding technology and concepts at home and abroad, according to the development of the grinding machine industry. Developed new products with internationally lea

MORE +

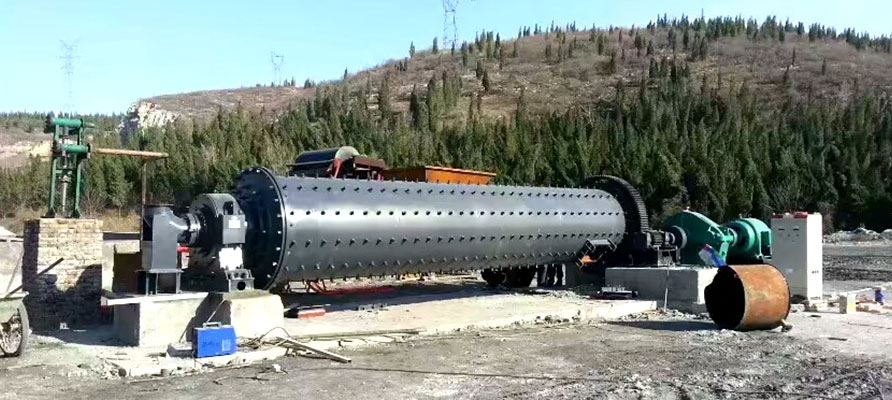

Ball Mill for Iron Ore Beneficiation in India
