Concrete Crusher

Concrete Crusher

Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.

  • Feeding size: 125-250mm
  • Output size: 0-40mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The concrete crusher can be used to primarily, secondly and finely crush more than 200 kinds of rough stones such as granite, basalt, limestone, rock, concrete, aggregate, gravel, dolomite and quartz. It is widely used in mining, quarry, construction, road, and other industries.

PE400×600, PE600×900, PE900×1200 are the hot-sale models in our company. 16-64t/h, 50-160t/h, 220-380t/h, 500-1000t/h can often be chosen by our customers. Our products are sold to more than 120 countries and regions around the world, including South Africa, Zimbabwe, Nigeria, Ethiopia, Saudi Arabia, Philippines, Indonesia, Mexico, Brazil, and other countries

concrete crusher applications and applicable materials

Concrete Crusher Features:

  1. 1. Simple structure, convenient installation and maintenance, and lower running cost.

  2. 2. The percentage of water can reach the level of 8% after the material being crushed.

  3. 3. Cubic product shape, lower flakiness content.

  4. 4. Accumulation density, less iron pollution.

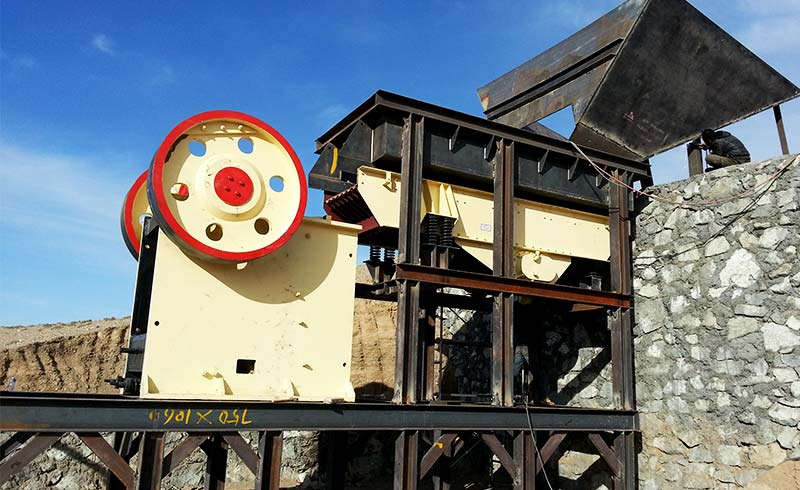

concrete crusher production site

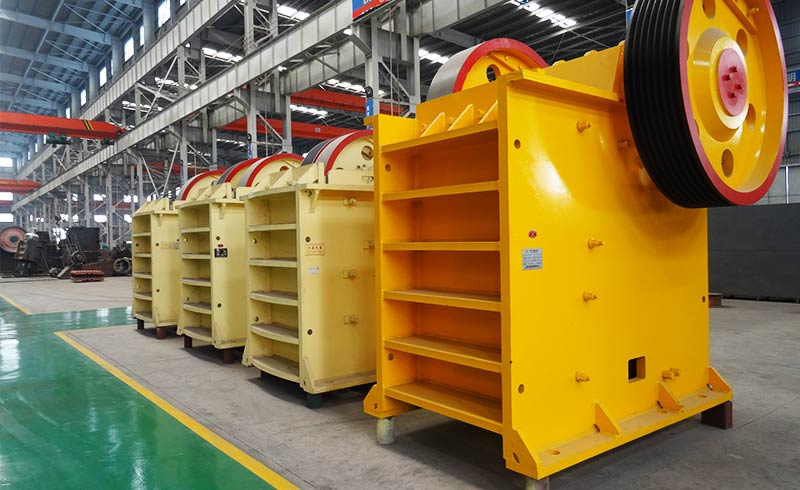

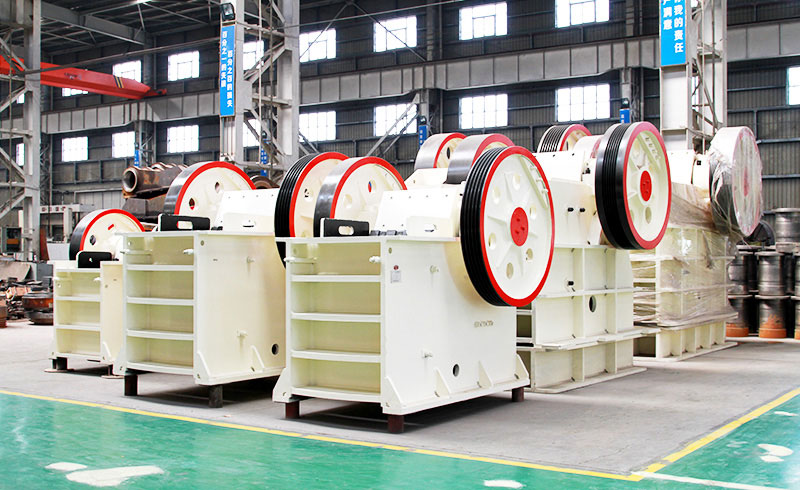

production workshop
the company produces a variety of models, if you need to customize, please contact us.

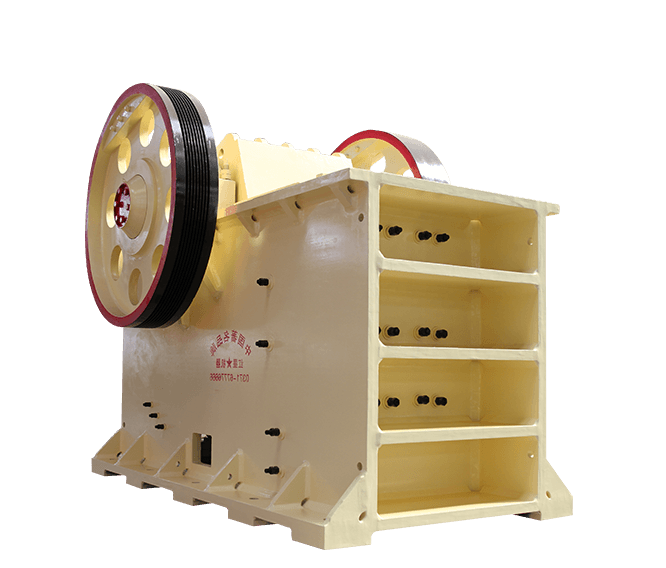

Product
presentation

Our Advantages

As a professional manufacturer of construction and mining crushing solutions, we can provide our customers with high-quality building and mine crushing equipment and provide detailed technical support. According to the specific requirements of customers, we offer the tailor-made overall design and construction plan. Different process requirements are met through an optimized combination of various types of equipment.

Different types and sizes of concrete crushers are available at different prices. If you need our latest offer, you can tell us the specific type and quantity you want. We have the most professional technical people here to provide you with a complete solution. You can contact us at info@hxjq.com. You can also consult us online or leave your contact information and project information in the message box below, such as materials, capacity and so on. We will contact you as soon as possible!

Technical data

  • PE/PEX Jaw Crusher
  • HD German Jaw Crusher
  • CJ Series Jaw Crusher
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
Model Feeding size(mm) Maximum feeding size (mm) Range of discharging port(mm) Handling capacity(t/h) Power(kw) Width×Length×Height
(mm)
HD72(57) 460×720 425 45-100 50-120 6P   55 1566×1965×1630
HD86(69) 580×860 500 50-150 60-210 8P  75 1722×1943×1810
HD98(751) 680×980 630 75-175 110-330 8P   110 1960×2470×2180
HD110(912) 850×1100 750 100-200 230-450 6P   132 2381×2775×2500
HD125 950×1250 900 125-225 280-750 8P   160 2600×3320×3120
Model Feed size L×W(mm) Max.Feeding size(mm) Range of discharging port(mm) Handling capacity(t/h) Power(kw)
CJ96 930×580 480 60-175 120-450 90
CJ106 1060×700 560 70-200 155-580 110
CJ125 1250×950 760 100-250 290-840 160
CJ150 1400×1200 960 125-250 340-950 200
CJ160 1600×1200 960 150-300 430-1260 250
CJ200 2000×1500 1200 175-300 760-1590 400
CJ1511 1500×1070 850 125-300 385-1080 200
CJ1513 1500×1300 1040 150-300 480-1160 200
  • PE/PEX Jaw Crusher
  • HD German Jaw Crusher
  • CJ Series Jaw Crusher
Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-64
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105



Model Feeding
size(mm)
Maximum
feeding
size(mm)
Handling
capacity
(t/h)
HD72(57) 460×720 425 50-120
HD86(59) 580×860 500 60-210
HD98(751) 680×980 630 110-330
HD110(912) 850×1100 750 230-450
HD125 950×1250 900 280-750
Model Max.Feeding size
(mm)
Handling capacity
(t/h)
CJ96 480 120-450
CJ106 560 155-580
CJ125 760 290-840
CJ150 960 340-950
CJ160 960 430-1260
CJ200 1200 760-1590
CJ1511 850 385-1080
CJ1513 1040 480-1160

For customization, please contact us.
