It is widely used for primary secondary fine crushing of gold ore, gold stones, gold rocks, gold quartz, etc. Adjustable final size meeting different needs. Following is common final output size.

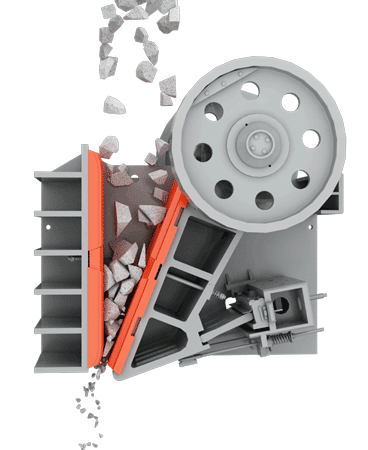

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw approaches the fixed jaw, and at the same time, the material is crushed to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle and the movable jaw becomes smaller. Under the role of pull rod and the spring, the movable jaw leaves the fixed jaw, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of motor and the periodic motion of movable jaw, realizing mass production.

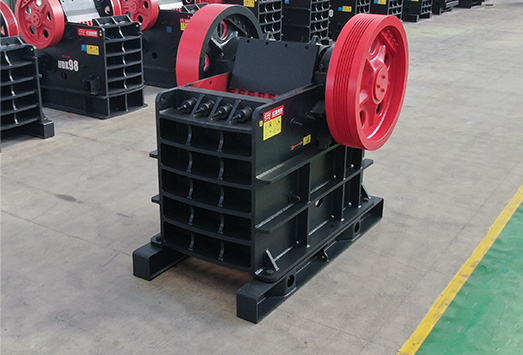

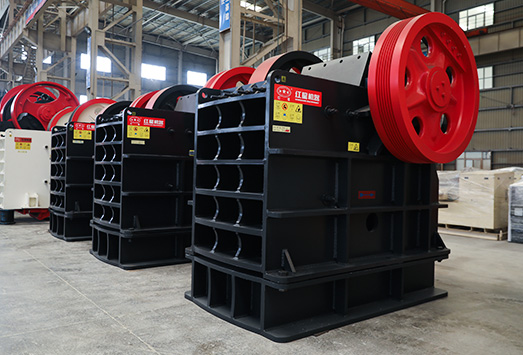

The high-quality steel plate welded frame avoids casting defects, more stable and reliable.
It is made of high wear-resistant gear plates, which has high durability and high performance. The movable jaw assembly is made of high-quality cast steel, more firm and reliable.
The new automatic control system realizes one-button adjustment, reliable and easy to maintain.
The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output. Its crushing ratio is large and the product size is uniform.
|
Model
|
Feed opening
(mm） |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
（L×W×H） (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
| Model | Feeding size(mm) | Maximum feeding size （mm） | Range of discharging port（mm） | Handling capacity(t/h) | Power(kw) | Width×Length×Height （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 1566×1965×1630 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-210 | 8P 75 | 1722×1943×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-330 | 8P 110 | 1960×2470×2180 |
| HD110(912) | 850×1100 | 750 | 100-200 | 230-450 | 6P 132 | 2381×2775×2500 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 2600×3320×3120 |
| Model | PEY-400x600 | PEY-500x750 | PEY-600x900 | PEY-750x1060 |
PEY-300x1300 |
| Size of feeding port(mm) | 400x600 | 500x750 | 600x900 | 750x1060 | 300x1300 |
| Max. Feeding size （mm） | 340 | 425 | 500 | 630 | 250 |
| Max. Feeding size（mm) | 40～90 | 35～100 | 75～125 | 80～150 | 20～100 |
| Eccentric shaft speed | 30 | 255 | 250 | 255 | |
| Handling capacity(t/h) | 30～65 | 50～120 | 80～200 | 120～220 | 40～100 |
| Power of main motor(KW) | 30 | 55 | 75 | 110 | 75 |
| Hydraulic cylinder | working pressure：5-7MPa ylinder diameter：Φ250mm Piston stroke：160mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
working pressure：11MPa ylinder diameter：Φ400mm Piston stroke：320mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
|
| Dimensions (L x W x H) | 3030x1350x1600 | 3300x1900x2100 | 3955x3360x2398 | 4980x2500x3100 | 4050x3420x1850 |
| Weight(kg) | 9480 | 16200 | 23400 | 37800 | 18200 |
| Model | Max.feeding size (mm) |
Processing capacity (t/h) |
| PE-150×250 | 125 | 1-3 |
| PE-200×300 | 180 | 2-6 |
| PE-200×350 | 180 | 3-10 |
| PE-250×400 | 210 | 5-21 |
| PE-400×600 | 340 | 16-64 |
| PE-500×750 | 425 | 40-110 |
| PE-600×750 | 500 | 80-240 |
| PE-600×900 | 500 | 50-160 |
| PE-750×1060 | 630 | 110-320 |
| PE-800×1060 | 640 | 130-330 |
| PE-830×1060 | 650 | 150-336 |
| PE-870×1060 | 660 | 190-336 |
| PE-900×1060 | 685 | 230-390 |
| PE-900×1200 | 750 | 220-380 |
| PE-1000×1200 | 850 | 315-500 |
| PE-1200×1500 | 1020 | 400-800 |
| PE-1500×1800 | 1200 | 500-1000 |
| PEX-150×750 | 120 | 8-25 |
| PEX-250×750 | 210 | 13-35 |
| PEX-250×1000 | 210 | 16-52 |
| PEX-250×1200 | 210 | 20-61 |
| PEX-300×1300 | 250 | 16-105 |
| Model | Feeding size(mm) |
Maximum feeding size（mm） |
Handling capacity (t/h) |
| HD72(57) | 460×720 | 425 | 50-120 |
| HD86(59) | 580×860 | 500 | 60-210 |
| HD98(751) | 680×980 | 630 | 110-330 |
| HD110(912) | 850×1100 | 750 | 230-450 |
| HD125 | 950×1250 | 900 | 280-750 |
| Model | Max.Feeding size (mm) |
Handling capacity (t/h) |
| PEY-400x600 | 340 | 30～65 |
| PEY-500x750 | 425 | 50～120 |
| PEY-600x900 | 500 | 80～200 |
| PEY-750x1060 | 630 | 120～220 |
| PEY-300x1300 | 250 | 40～100 |
For customization, please contact us.
Price varies with different capacities and types. Click for specific price.
