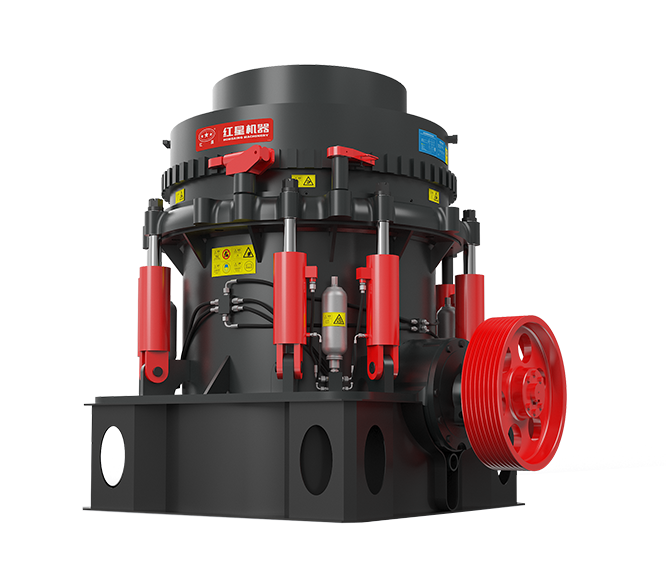

Hydraulic Cone Crusher

Hydraulic Cone Crusher

Application fields: metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry.

  • Processing capacity:36-1814t/h
  • Max.Feeding size:35-300mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The hydraulic cone crusher is a new type of cone crusher that is optimized by our company to combine the advantages of single-cylinder hydraulic cone crusher and PSG cone crusher. The high-performance crushing cavity type and the high crushing frequency are combined to make the processing capacity of the machine greatly improved. Due to the principle of laminating and crushing, the crushed products are mostly cubic structures, which greatly reduces the needle-like materials.

hydraulic cone crusher applications and applicable materials

Hydraulic Cone Crusher Features:

  1. 1. The use of the safety cylinder can automatically control the overload protection and clear cavity function.

  2. 2. The fully automatic control system, easy to achieve remote and machine side control.

  3. 3. Hydraulic lubrication combined oil station, small size, simple wiring.

  4. 4. The discharging port is adjusted by hydraulic push cylinder, easy to adjust.

  5. 5. The dust removal mechanism is sealed with dry oil. Reliable structure and low failure rate.

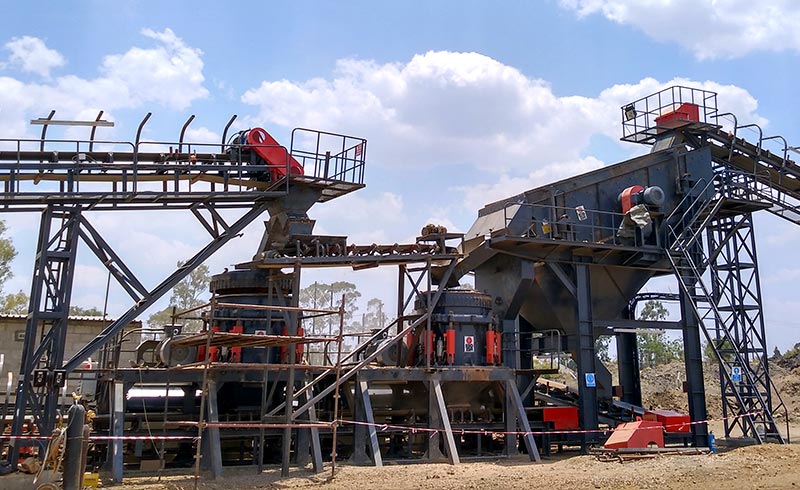

hydraulic cone crusher production site

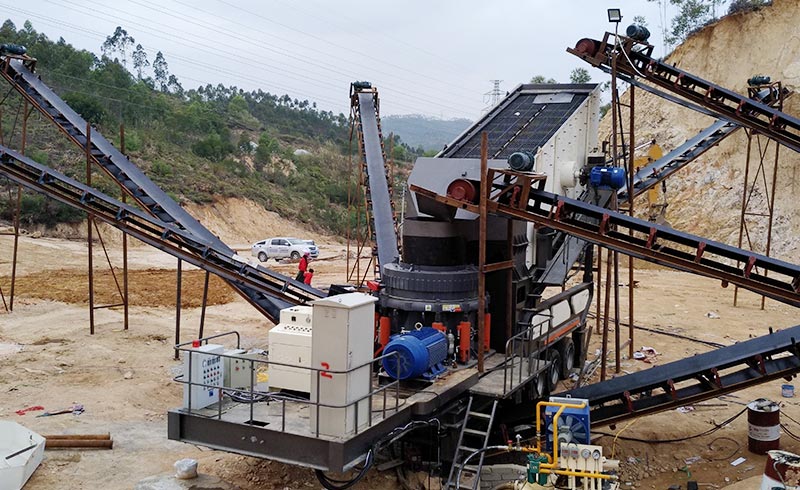

hydraulic cone crusher production site

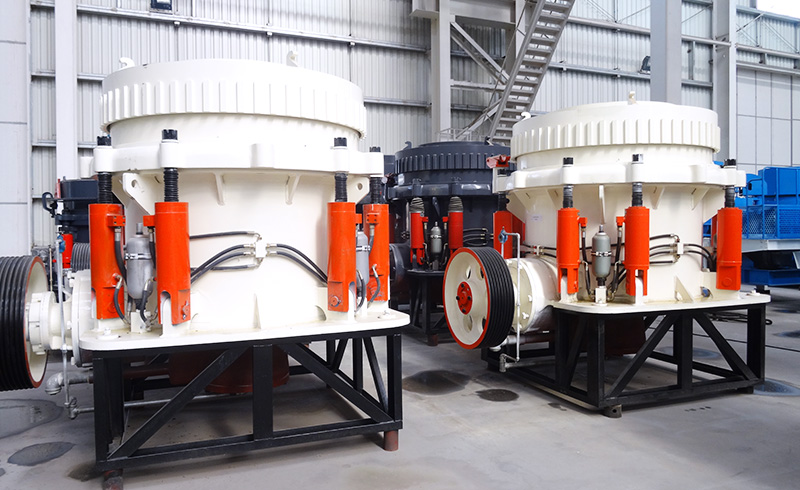

hydraulic cone crushers
Product
presentation

Quality After-sales Service

Pre-sales intimate communication---Intimate communication with customers, free visits to the factory, test operation according to demand, tailor-made solutions for customers.

On-the-spot field visits---going on-site site visits to understand specific needs. In the design and production of products, quality is guaranteed.

Free installation---On-site training specific operations, assist customers in production and return visits regularly.

Technical data

  • Hydraulic Cone Crusher
Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge  Opening (mm)

Feed Opening Size
of  the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
FTMGYS 300 C1 910 13~38 175 150 81~180 6P  90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
FTMGYS 400 C1 1200 19~51 241 205 207~400 6P  200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
FTMGYS 500 C1 1600 25~64 269 228 280~650 6P  280 40
C2 22~51 241 205 258~450
C3 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300
  • Hydraulic Cone Crusher
Model Max.feeding
size(mm)
Processing
capacity(t/h)
HXGYS 300 150 81~180
85 60~180
65 36~145
35 36~130
HXGYS 400 205 207~400
178 162~300
115 126~310
89 109~230
76 82~230
54 40~230
HXGYS 500 228 280~650
205 258~450
178 180~410
113 162~355
76 136~330
60 90~300

For customization, please contact us.
