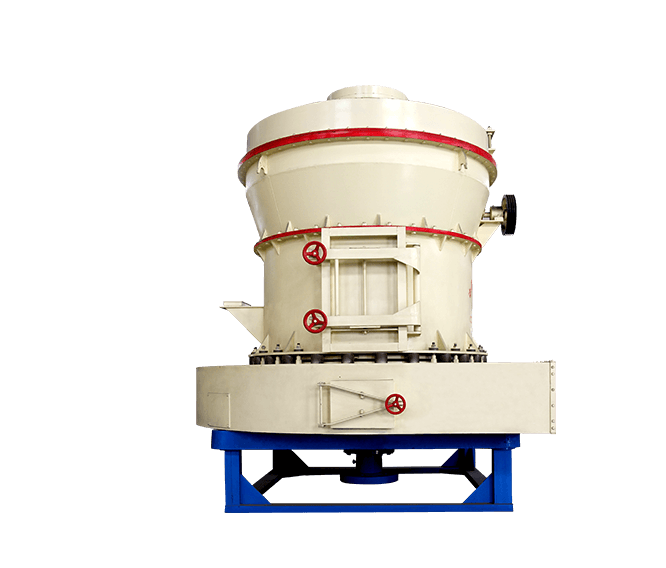

Raymond Mill

Raymond Mill

Application fields: mining, metallurgy, chemical, building materials and other industries.

  • Production capacity: 8-176 t/d
  • Output size: 0.044-0.173mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Raymond mills can be used for the high-fine power processing in minerals, chemicals, construction, and other industries. Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.

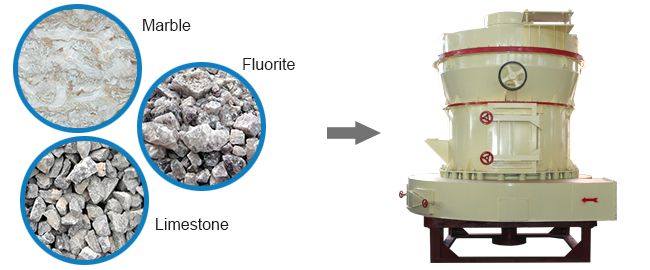

Raymond mill applications and applicable materials

Raymond Mill Features:

  1. 1. Compared with ball mills, Raymond mills have higher efficiency and lower power consumption.

  2. 2. Raymond mill has a vertical structure, small footprint, and small one-time investment.

  3. 3. Strong wear resistance and reliable operation. The wearing parts are made of high manganese steel and have a long service life.

  4. 4. The non-polluted environment, all these characteristics meet the requirements of green milling production. The small dust, the clean workshop.

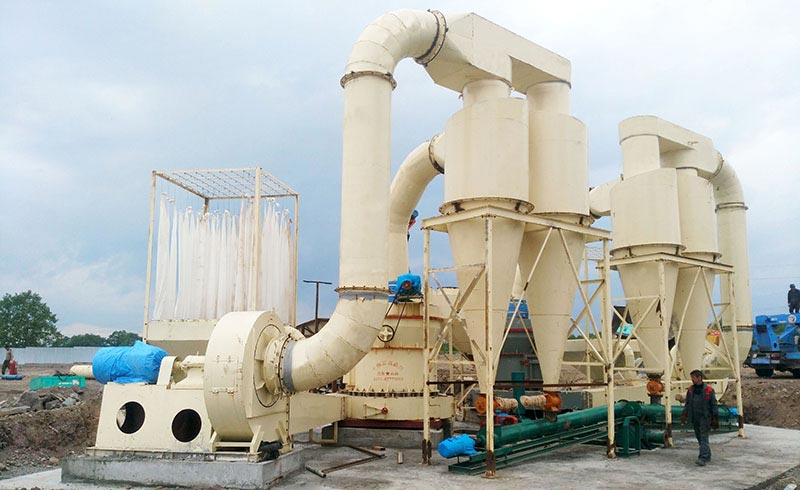

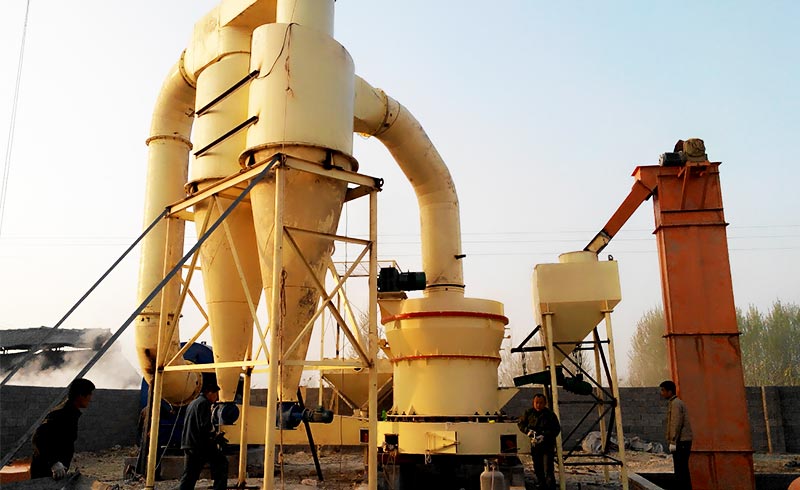

Raymond mill production site

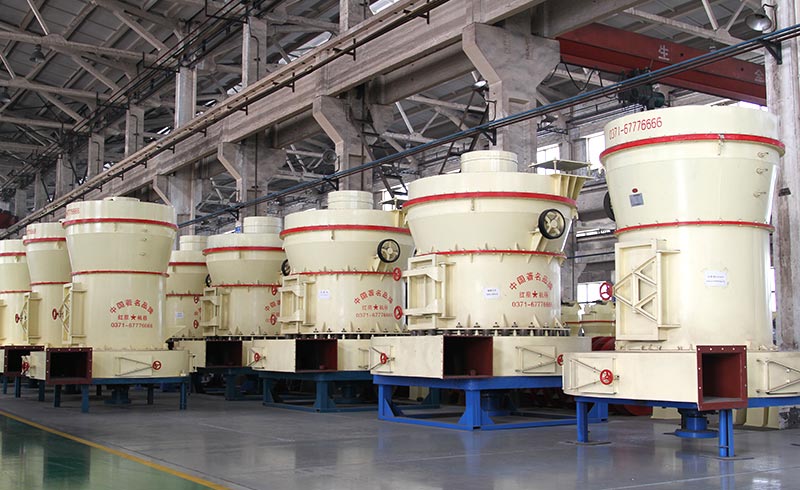

HXJQ Raymond mill production plant area

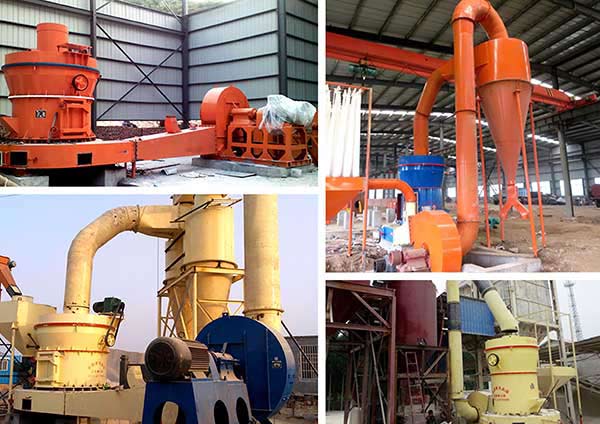

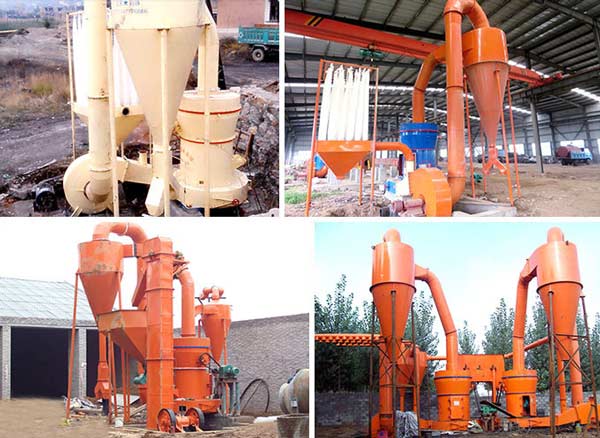

production site
Product
presentation

More Information

The structure of the machine is mainly composed of the main machine, an analyzer, a fan, a finished cyclone separator, a fine powder cyclone separator, and a duct. Among them, the main body is composed of a frame, an inlet volute, a blade, a grinding roller, a grinding ring, and a cover.

the company pursues high standards of manufacturing and qualified products. The company's products have passed ISO9001, CE and GOST international quality system certification. In 2005, the company's Raymond mill was rated as a famous Chinese brand. In 2007, the "Red Star" brand mining equipment produced by the company was tested by the national authority and was rated as the quality standard and assured brand. Our products are widely known in the international market, such as Russia, Kazakhstan, Uzbekistan, Azerbaijan, Turkey, Kuwait, South Africa, Zimbabwe, Nigeria, Egypt, Vietnam, Malaysia, India, Australia, Mexico, etc.

Technical data

  • Raymond Mill
Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5

  • Raymond Mill
Model Output Size
(mm)
Shift output of different
materia fineness(t)
4525 0.173-0.044 16-176
4119 0.173-0.044 8-78

For customization, please contact us.
