Rock Crusher

Rock Crusher

Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.

  • Processing capacity:1-1000t/h
  • Finished size: 0-350mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

As the indispensable first step of the stone product line, the rock crusher machine always plays an important role. It can be used to crush once, twice and finely crushed more than 200 kinds of rough stones such as granite, basalt, limestone, rock, concrete, aggregate, gravel, dolomite and quartz. It is widely used in mining, quarry, construction, road, and other industries.

rock crusher applications and applicable materials

Rock Crusher Features:

  1. 1. Big crushing ratio.

  2. 2. Cubic product shape, lower flakiness content.

  3. 3. Accumulation density, low iron pollution.

  4. 4. Simple structure, convenient installation and maintenance and lower operation cost.

  5. 5. The percentage of water can reach the level of 8% after the material being crushed.

various and spot products

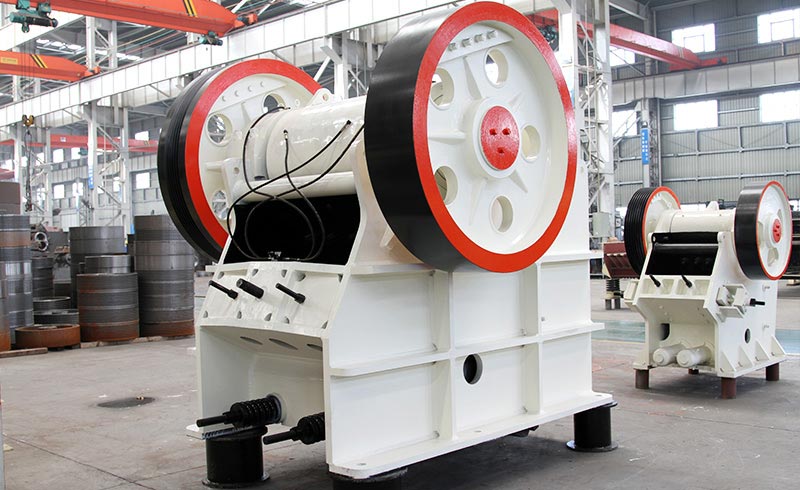

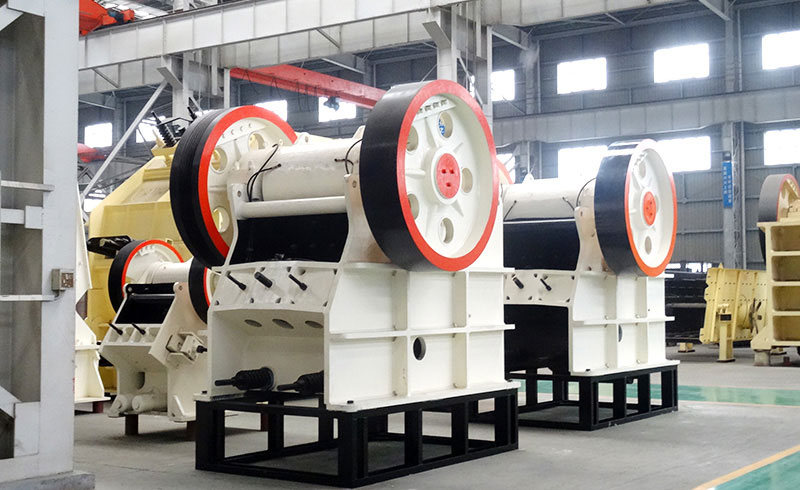

rock crusher

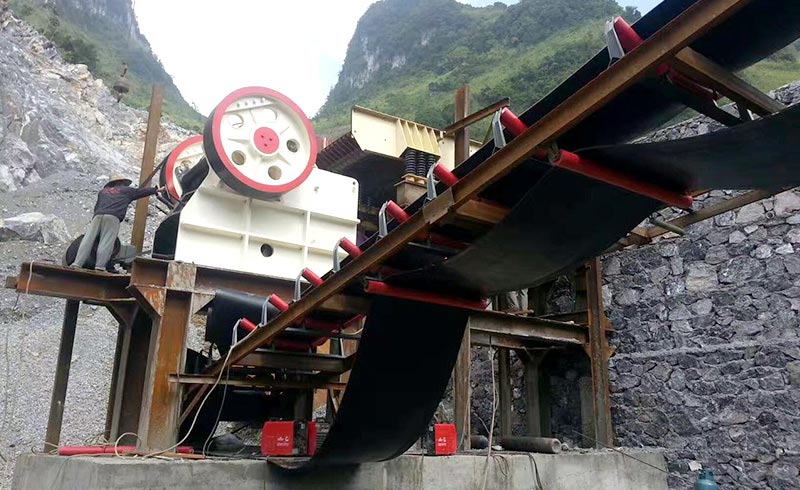

production site
Product
presentation

A Worldwide Network Offering

Henan Hongxing Mining Machinery Co., Ltd is proud to offer a line of rock crushing machines that provide a wide range of available options. The rock crushers are sold to more than 160 countries and regions around the world.

African countries include Zimbabwe, Kenya, South Africa, Zambia, Guinea, Algeria, Namibia, Egypt, and Ethiopia, etc

Asian countries include Indonesia, India, Malaysia, Philippines, Pakistan, Vietnam, and Sri Lanka etc.

North American countries include Mexico, Canada, etc.

More

Technical data

  • PE/PEX Jaw Crusher
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
  • PE/PEX Jaw Crusher
Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-64
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105



For customization, please contact us.
