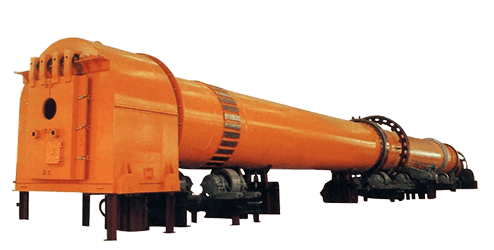

Rotary Kiln

Rotary Kiln

Production capacity: 180-10000t/d

  • Specification:Φ2.5×40m-Φ6.0×95(m)
  • Motor power: 55-1900kw

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Rotary kilns work by processing material in a rotating drum at high temperatures for a specified retention time to cause a physical change or chemical reaction in the material being processed. The kiln is set at a slight slope to assist in moving material through the drum. According to the material types to be processed, the rotary kiln can be divided into cement kiln, metallurgical chemistry kiln, and limestone kiln.

rotary kiln applications and applicable materials

Rotary Kiln Features:

  1. 1. Advanced structure, good sealing, the kiln head is sealed by the shell, and the kiln tail adopts the axial contact seal which ensures the sealing is reliable.

  2. 2. Easy to install and maintain; large kiln equipped with the auxiliary drive to meet the needs of installation and maintenance.

  3. 3. The rotary kiln with large unit volume, long furnace life, stable operation, high heat transfer efficiency, and low heat consumption.

  4. 4. The rotary kilns offer a robust and reliable design that delivers the benefits of low resource consumption and high operational reliability.

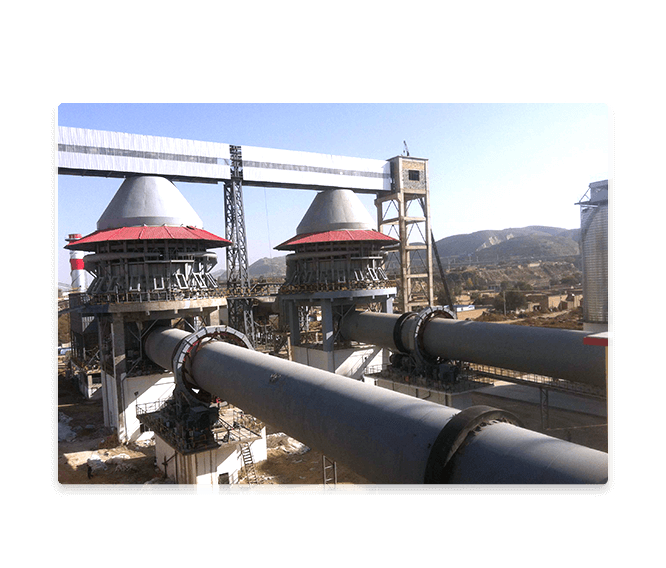

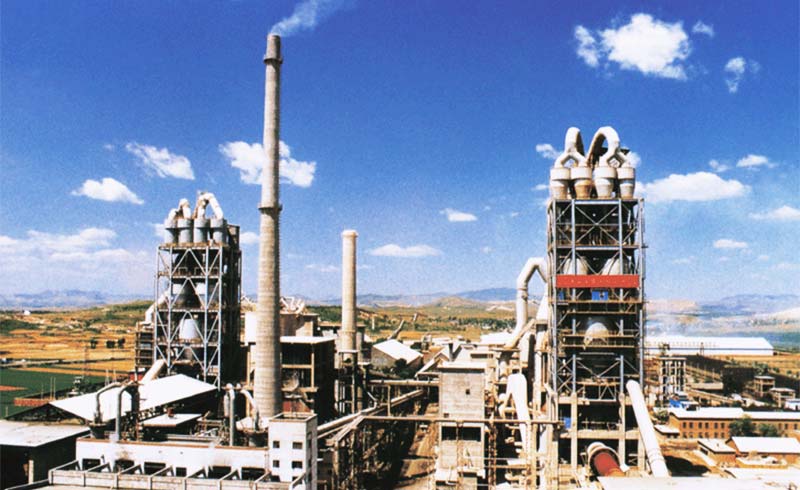

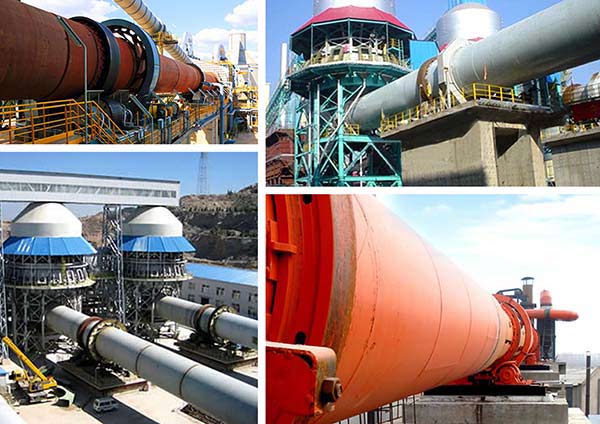

rotary kiln production site

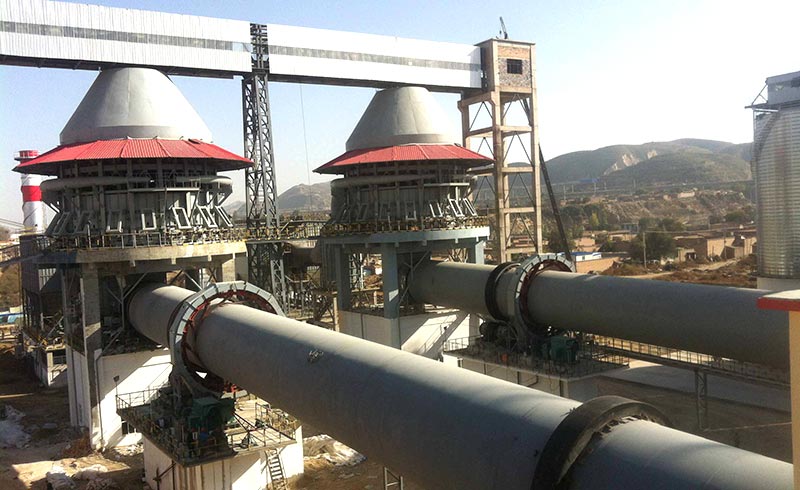

rotary kiln production site
customers from different countries visited the factory
Product
presentation

Application Value of Rotary Kiln

Rotary kiln is a piece of essential equipment in mineral processing, and it is the equipment for calcining high-grade cement in cement plants.

Cement kiln is mainly used for calcining the cement clinker and it can be divided into dry-producing cement kiln and wet-producing cement kiln. Metallurgical chemistry kiln is mainly used for the magnetizing roasting of the lean iron ore and the oxidizing roasting of the chromium and josephinite in the steelworks in the metallurgical industry, for the roasting of high alumina bauxite ore in the refractory plant, for the roasting of clinker and aluminum hydroxide in the aluminum manufacturing plant and for the roasting of chrome ore in the chemical plant. Limestone kiln is mainly used for roasting active lime and lightly calcined dolomite used in the steelworks and ferroalloy works.

Technical data

  • Rotary Kiln
Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 -----
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29 outside disassemble kiln
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58 outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 outside disassemble klin
Φ3.0×60 3 60 3.5 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278 disassemble klin
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 kiln with prehrater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating klin for usimg ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 klin with prehrater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 klin with prehrater precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 klin with prehrater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 klin with  prehrater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 klin with prehrater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 klin with prehrater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 klin with prehrater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 klin with prehrater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 klin with prehrater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 klin with prehrater precalcine
  • Rotary Kiln
Product
Specification
(m)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 180 0.44-2.44
Φ2.5×50 200 0.62-1.86
Φ2.5×54 280 0.48-1.45
Φ2.7×42 320 0.10-1.52
Φ2.8×44 450 0.437-2.18
Φ3.0×45 500 0.5-2.47
Φ3.0×48 700 0.6-3.48
Φ3.0×60 800 0.3-2
Φ3.2×50 1000 0.6-3
Φ3.3×52 1300 0.266-2.66
Φ3.5×54 1500 0.55-3.4
Φ3.6×70 1800 0.25-1.25
Φ4.0×56 2300 0.41-4.07
Φ4.0×60 2500 0.396-3.96
Φ4.2×60 2750 0.41-4.07
Φ4.3×60 3200 0.396-3.96
Φ4.5×66 4000 0.41-4.1
Φ4.7×74 4500 0.35-4
Φ4.8×74 5000 0.396-3.96
Φ5.0×74 6000 0.35-4
Φ5.6×87 8000 Max4.23
Φ6.0×95 10000 Max5

For customization, please contact us.
