Spiral Classifier

Spiral Classifier

Applied materials: limestone, talc, graphite, barite, mica, etc.

  • Sand return: 80-23300t/d
  • Overflow: 20-1785t/d

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The spiral classifier is important beneficiation equipment in mineral processing. According to the number of spirals, the spiral classifier can be divided into a single spiral classifier and a double spiral classifier. Spiral classifier is widely used for separating the sand in the ore beneficiation plant to equip with ball mill to form a closed cycle, for classifying ore sand and fine silt in the gravity separation plant, for the granularity classification of the pulp in the metal ore beneficiation flow and for removing the slime and water in the ore washing process. This classifier has the advantages of simple structure, reliable working condition, and convenient operation.

spiral classifier applications and applicable materials

Spiral Classifier Features:

  1. 1. Simple structure and wide range of use.

  2. 2. Using frequency control technology, efficient and environmentally friendly.

  3. 3. Low speed, high production efficiency.

  4. 4. Advanced technology, simple process.

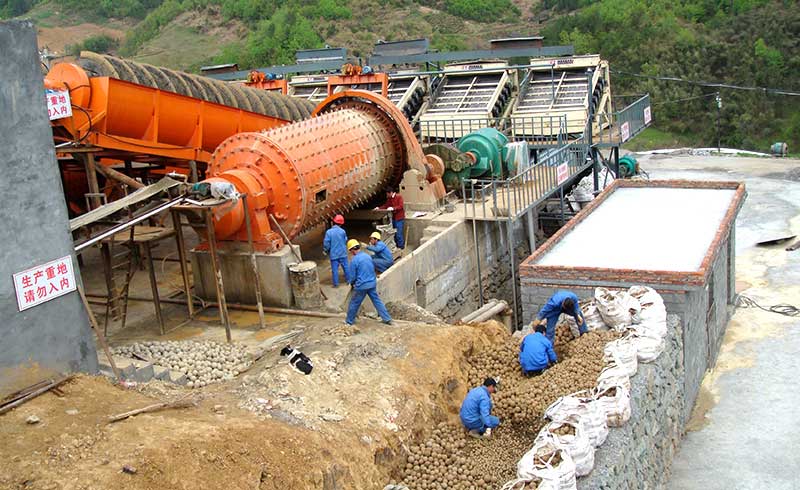

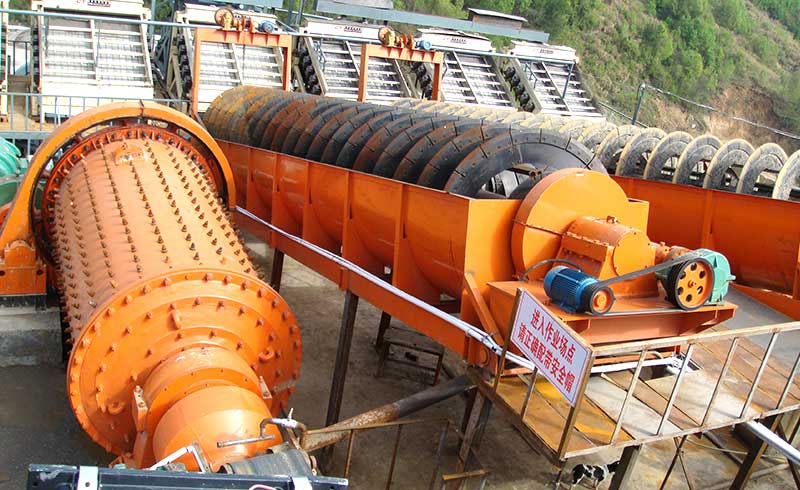

production site

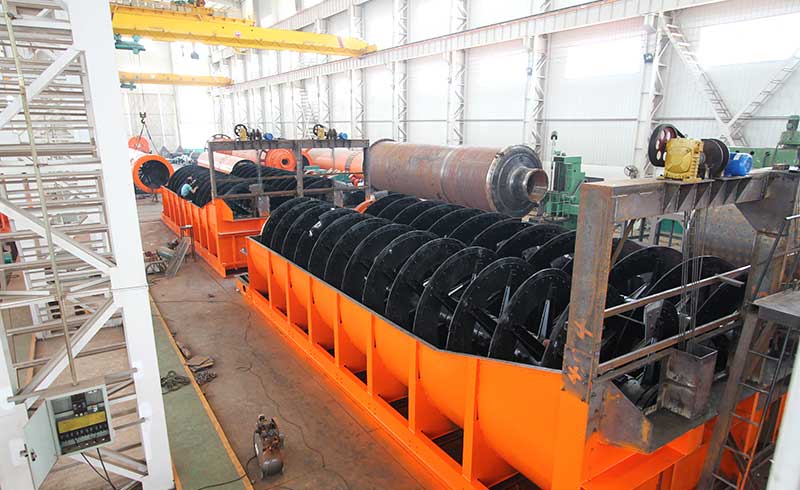

hongxing machinery

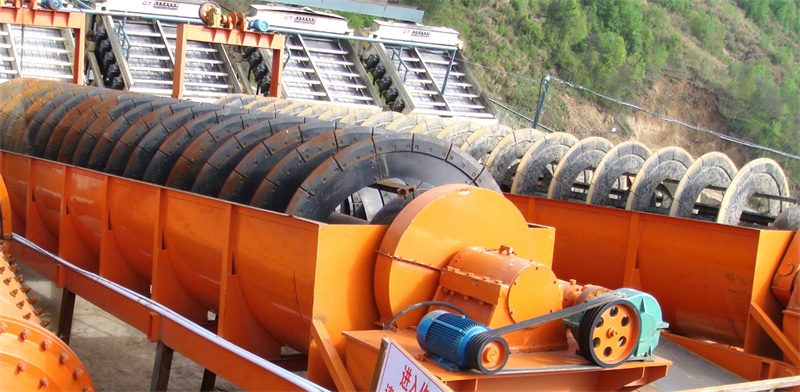

production site
Product
presentation

Why Choose Our Products

As a professional mining machinery manufacturer, Hongxing is engaged in the R&D and Manufacturing of mining equipment, including the crushing and screening equipment, and the industrial powder grinding equipment, etc. The main machines, made by Hongxing, are the jaw crusher, cone crusher, impact crusher, VSI crusher, hammer crusher, vibrating screen, sand washer, Raymond mill, ball mill, and so on. Our products are sold to several countries and regions in Eastern Europe, the Middle East, Africa, South Asia, Southeast Asia, etc.

Price List of Spiral Classifier

Please tell us your needs, such as project information, the quantity you need, the materials you need to process, etc. We will provide you with the price list and product information that suits you based on the information you provide. So you can now click on the online chat on the right to get a quote online, or send an email to info@hxjq.com. Our engineers will contact you in time.

Technical data

  • Spiral Classifier
Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
  • Spiral Classifier
Model Spiral
Diameter
(mm)
Spiral
rotate
speed
(r/min)
FG-3 300 12-30
FG-5 500 8-12.5
FG-7 750 6-10
FG-10 1000 5-8
FC-10
FG-12 1200 4-6
FC-12
2FG-12
2FC-12
FG-15 1500 4-6
FC-15
2FG-15
2FC-15
FG-20 2000 3.6-5.5
FC-20
2FG-20
2FC-20
FG-24 2400 3.67
FC-24
2FG-24
2FC-24
2FG-30 3000 3.2
2FC-30

For customization, please contact us.
