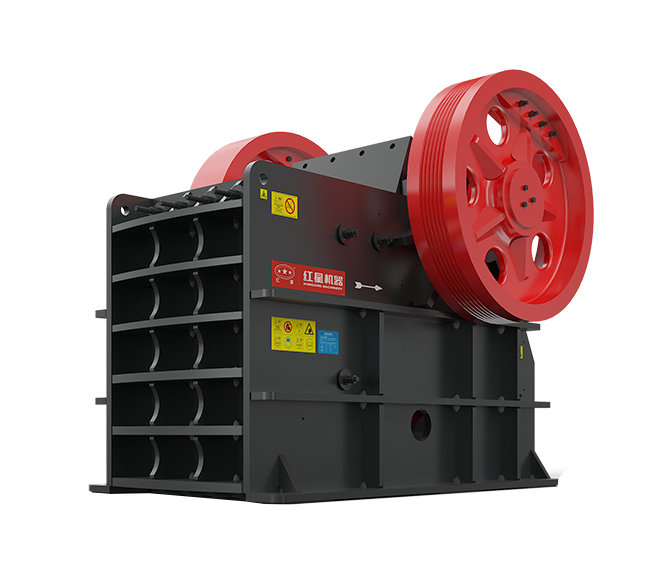

Stone Crushing Machine

Stone Crushing Machine

Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.

  • Processing capacity:5-1000t/h
  • Finished size: 0-40mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Hot-sale Model Numbers

We have the stone crusher machines with different model numbers, of which the popular ones are the PE-500*750, PE-600*900, and the PE-1000*1200.

PE-500*750
500*750mm inlet size
425mm max. feeding size
50-100mm outlet size range
40-110t/h processing capacity
PE-600*900
600*900mm inlet size
500mm max. feeding size
65-160mm outlet size range
50-160t/h processing capacity
PE-1000*1200
1000*1200mm inlet size
850mm max. feeding size
195-265mm outlet size range
315-500t/h processing capacity

the application and applicable materials of stone crushing machine

Stone Crushing Machine Features:

  1. 1. With advanced techniques.

  2. 2. High crushing ratio, high output, and low running cost.

  3. 3. Simple structure, convenience in maintenance.

  4. 4. Applied to be used as the primary crusher and secondary crusher to Process soft and medium-hardness and high-hardness materials

the production line of stone crushing machine

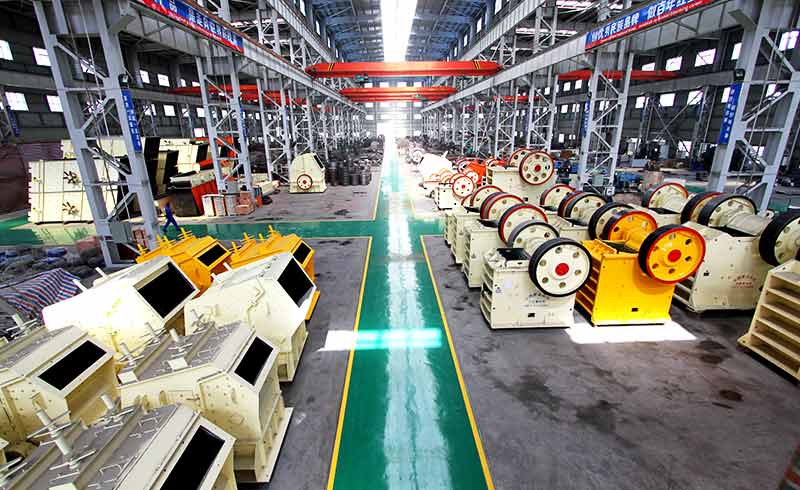

strong production strength

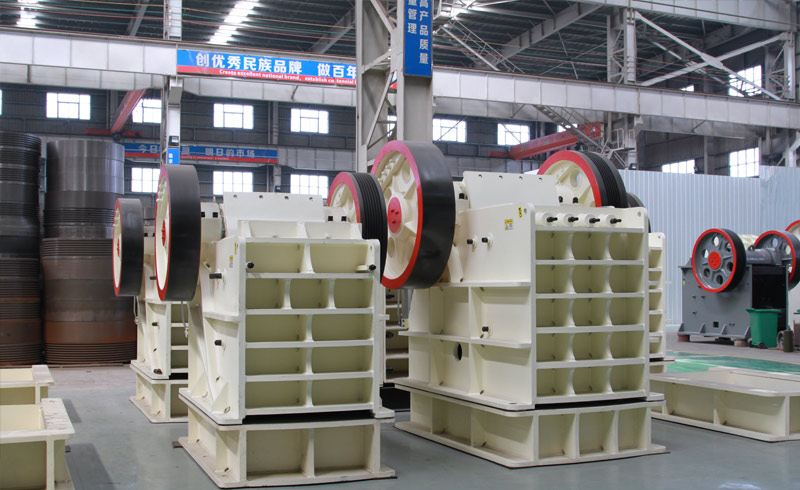

various and spot products
Product
presentation

Quality Service

For new customers, we welcome you to the factory for consultation. We now have three large production bases. The company is headquartered in Zhengzhou High-tech Industrial Development Zone, covering an area of 350,000 square meters and has a determined heavy industrial plant of 260,000 Square meters. We have professional engineers to provide you with one-on-one service. our factory will arrange car for picking up. a warm welcome to visit!

For old customers, the company is equipped with professional technicians to track the whole process. If you encounter an unresolved or unknown issue while using our products. Please contact us and we will come up with a solution to solve your problem as soon as possible.

Technical data

  • PE/PEX Jaw Crusher
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
  • PE/PEX Jaw Crusher
Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-64
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105



For customization, please contact us.

more

Jaw Crusher

Big Crushing Ratio Big Feeding Size High Output Low Running Cost
Jaw Crusher
more

Impact Crusher

Nice Particle Shape Of Final Product Compact and Unique Structure High Output Big Inlet Size
Impact Crusher
more

Cone Crushers

Safe and Reliable Operation Adjustable Final Products Size High Performance High Productivity
Cone Crushers

SOLUTION

Stone Crusher In Mexico

Stone Crusher In Mexico

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +
Stone Production Line

Stone Production Line

The stone production line produced by Hongxing Mining Machinery has many varieties, models, fast delivery, guaranteed quality. To provide you with one-on-one after-sales service, welcome online consultation.

MORE +
Applied materials:

barite, calcite, coal, concrete, aggregate, gravel, basalt, cement, gypsum, limestone, granite, rock, etc.
