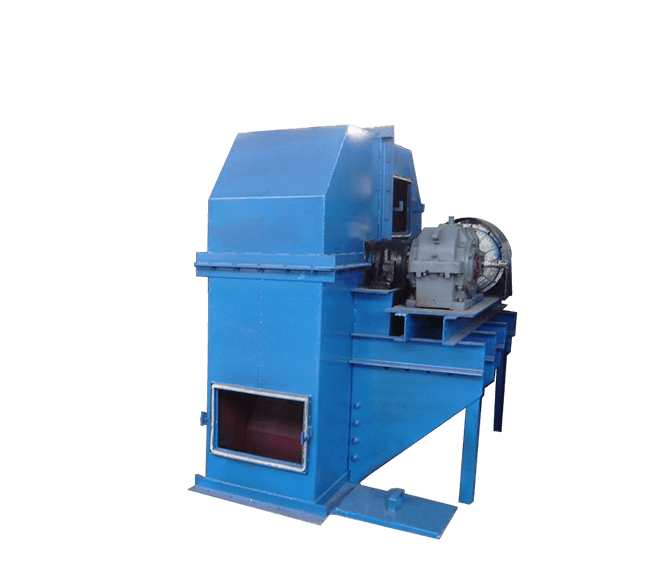

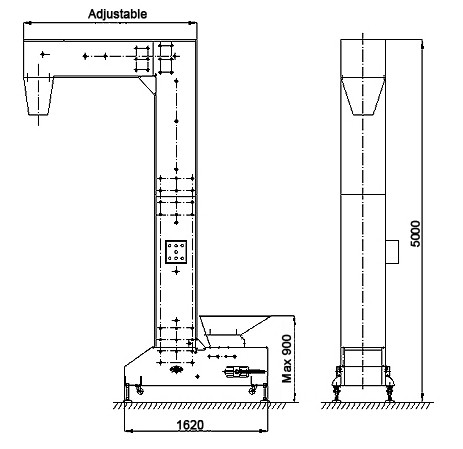

Bucket Elevator

Bucket Elevator

Application fields: material transportation systems in the building materials, coal, electric power, and other industries.

  • Conveying capacity: 7-500m³/h
  • Lifting height: 25-80m

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The bucket elevator, with the big conveying amount and high hoisting height, is applied to lift materials from the bottom to the top. It is applied to convey powdery and granular materials and small pieces of smooth and abrasive materials. Driven by the circular chain, the bucket elevator can convey the materials with high temperature, which can’t exceed 250℃.

bucket elevator application and applicable materials

Bucket Elevator Features:

  1. 1. The power required for operation is small, and there is almost no returning material when the material is lifted, so the power utilization rate is high.

  2. 2. A wide range of applications not only can it be applied to the general powder, small granular materials, but it also can be used in the larger abrasive materials

  3. 3. Smooth operation and reliable operation. Advanced design principles and processing methods ensure the reliability of the machine operation.

  4. 4. Simple operation, convenient maintenance, no environmental pollution, large conveying capacity, and high lifting height.

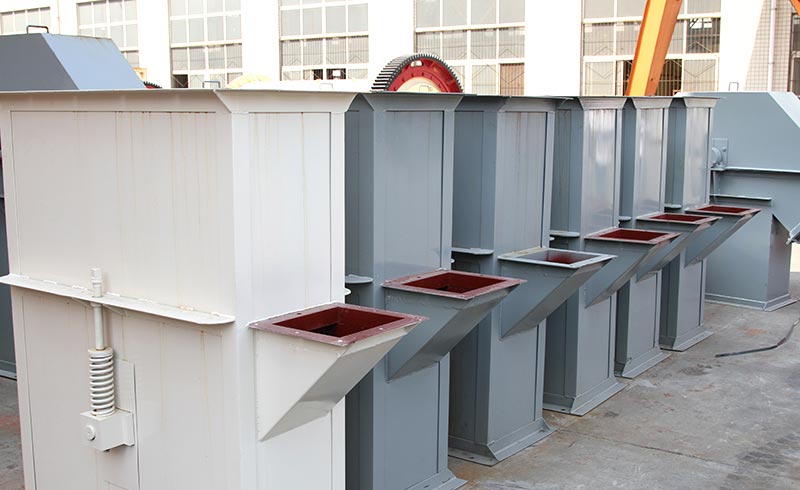

various and spot products
professional after-sales service
dealing customer which visited factory

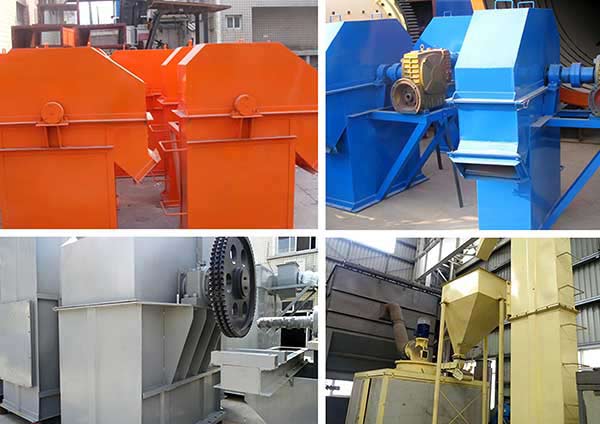

Product
presentation

Bucket Elevator Price

Lifting equipment is one of the leading product so far company. The investment cost of the equipment is low and the revenue recovery is fast. The price of a bucket elevator is affected by many factors. Different manufacturers of different types of bucket elevator will give different quotes. you can chat online with our service staff at any time to get more detailed information.

Learn More Bucket Elevator and Hongxing Machinery

Nearly 40 years of mining equipment technology and experience make the bucket elevator a simple, rational and compact structure. Rigorous quality management guarantees the superior quality of each machine.

Hongxing Mining Machine has always been committed to providing customers with a comprehensive, all-process, all-weather one-stop service based on the interests of customers.

If you are interested in our products or have any questions, you can contact us online or send an email to info@hxjq.com

Technical data

  • Bucket Elevator

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
  • Bucket Elevator

Technical parameters of ring chain bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
TH160 25 7-12
TH200 28 8-15
TH250 30 10-25
TH300 30 25-35
TH315 40 30-40
TH400 40 45-60
TH500 40 65-80
TH630 40 100-120
TH800 40 130-150

Technical parameters of wire belt bucket elevator

Specification Max. lifting height
(m)
Convrying capacity
(m³/h)
TDG160 80 34
TDG200 80 45
TDG250 80 71
TDG315 80 101
TDG400 80 158
TDG500 80 218
TDG630 80 345
TDG800 80 491

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max. lifting capacity
(m³/h)
NE15 40 16
NE30 59 31
NE50 62 60
NE100 58 110
NE150 65 170
NE200 73 220
NE300 61 320
NE400 47 420
NE500 58 500

For customization, please contact us.
