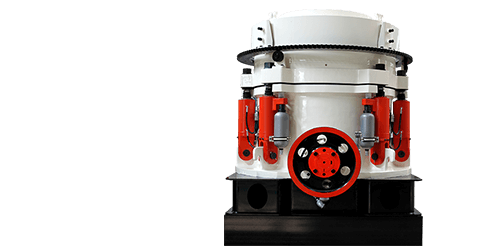

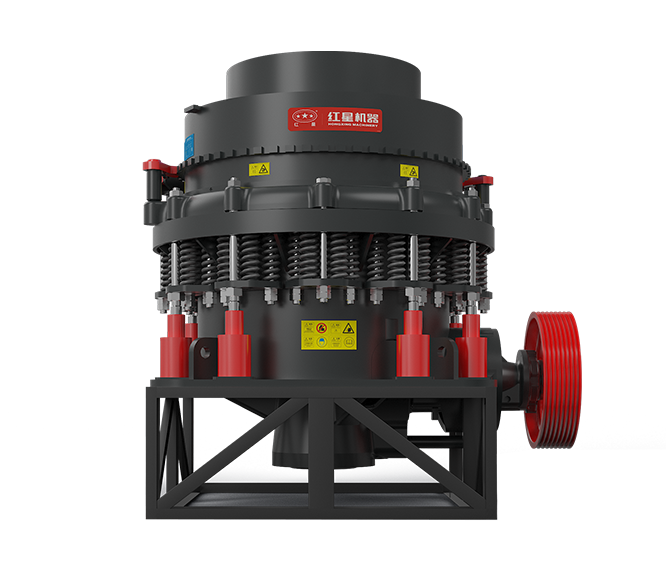

Compound Cone Crusher

Compound Cone Crusher

Applications: Used in mining, building materials, transportation, energy, chemical and other industries.

  • Processing capacity: 27-1814t/h
  • Feeding particle size: ≤ 314mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Compound Cone Crusher is PSG series cone crusher produced by our company. Compound Cone Crusher is a new type of cone crusher, also called symons cone crusher. Compared with the traditional spring cone crusher, this type can realize various functions such as hydraulic automatic adjustment of discharging port size, automatic clearing cavity, thin oil lubrication, cavity shape optimization, etc.

symons cone crusher applications and applicable materials

Compound Cone Crusher Features:

  1. 1. Wear-resistant Mn-16 is used on the crushing wall, and effectively extend the life of the dental plate.

  2. 2. Clean the chamber and adjust the discharging port through hydraulic, which effectively save maintenance time.

  3. 3. High output, large crusher cavity, long stroke, large crushing force, can completely crush the materials. Compared with the old spring cone, the output is increased by about 15%.

  4. 4. It has many crusher chamber type, so users can choose a suitable cavity type according to their actual requirement. The finished product has a uniform particle size and no obvious crack.

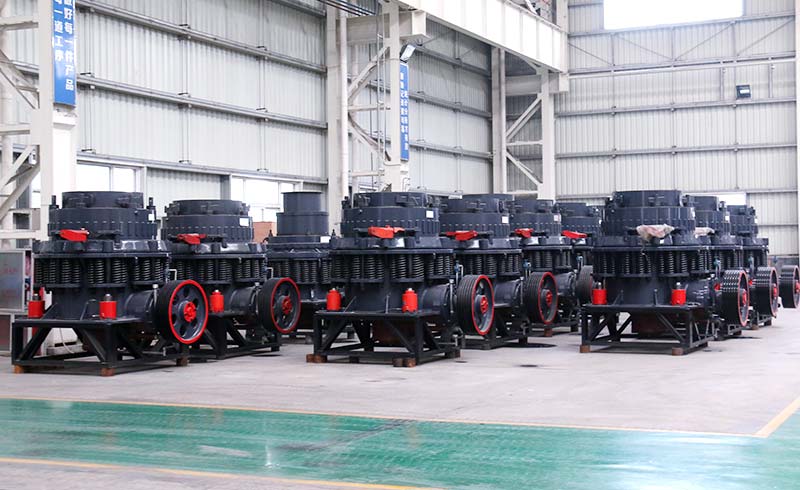

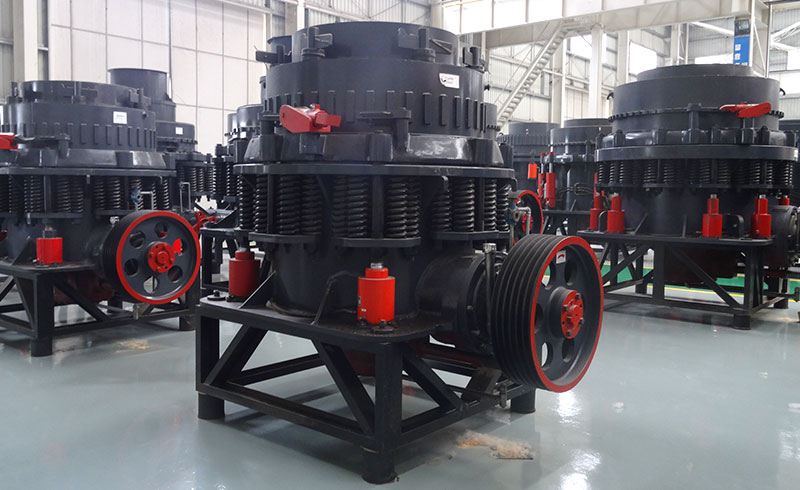

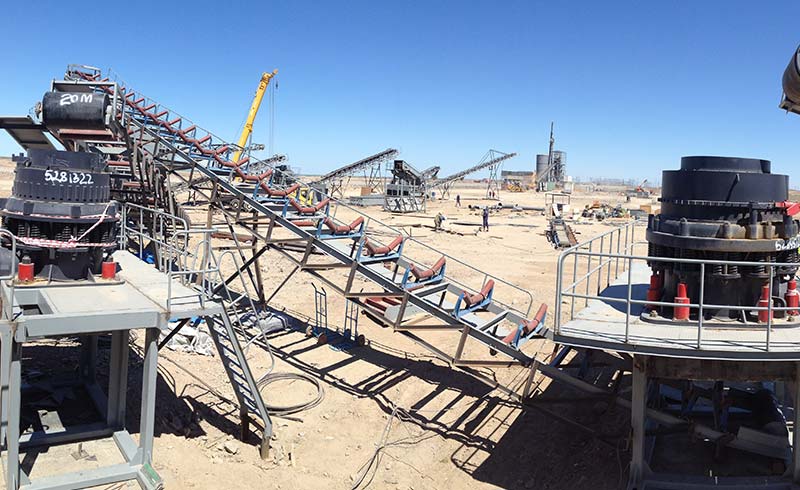

symons cone crusher production site
The company produces different types of symons cone crusher
compound cone crusher
Product
presentation

Manufacturer Strength

There are fewer manufacturers producing compound cone crushers in China. It is necessary to have certain production strength and rich experience to design this type of equipment.  Henan Hongxing Mining Machinery Co.Ltd is Joint-stock mining machinery manufacturing enterprise integrated into scientific research, production and marketing for now possessing three large manufacturing bases(Henan Hongxing, Luoyang Zhongde, and Zhengzhou Wort), with an area of 350,000m2. Also, we provide free technical support and installation guidance for all users, until they are satisfied.

Technical data

  • Symons Cone Crusher
Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P   75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P   160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
PSG 1600 1620 1676 (5½′) 16-38 209 178 181-327 6P   250 43270
1624 22-51 241 205 258-417
1626 25-64 269 228 299-635
1607 5-13 70 60 90-209
1608 6-19 89 76 136-281
1613 10-25 133 113 190-336



  • Symons Cone Crusher
Type Max.feeding
size(mm)
Processing
capacity
(t/h)
PSG 900 85 45-91
150 59-163
35 27-90
65 27-100
PSG 1300 115 109-181
178 132-253
205 172-349
54 36-163
76 82-163
89 109-227
PSG 1600 178 181-327
205 258-417
228 299-635
60 90-209
76 136-281
113 190-336

For customization, please contact us.
