Your Location: Home > Products > Ore Beneficiation > High Efficiency Concentrator

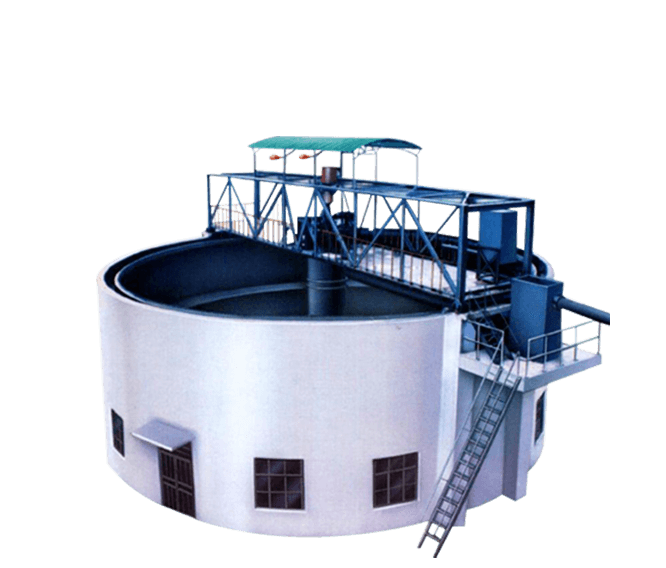

High Efficiency Concentrator

High Efficiency Concentrator

Production capacity: 5.6-6250t/d

  • Total Weight:1.9-214.9t
  • Sediment area:2.54-7846m2

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

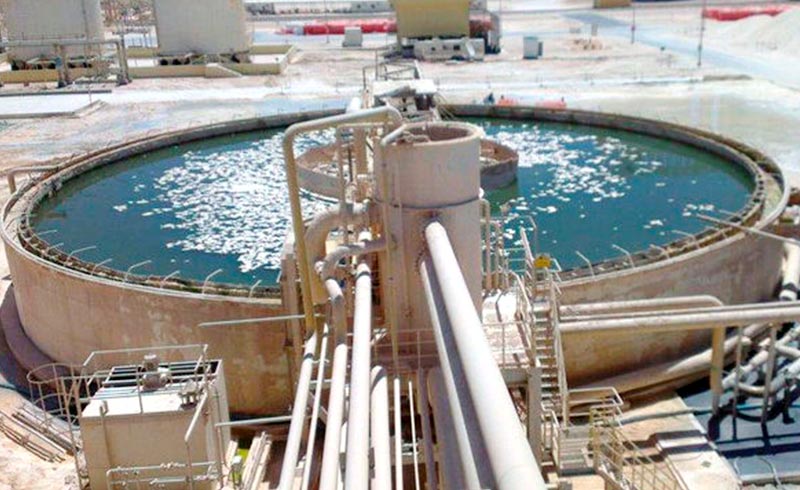

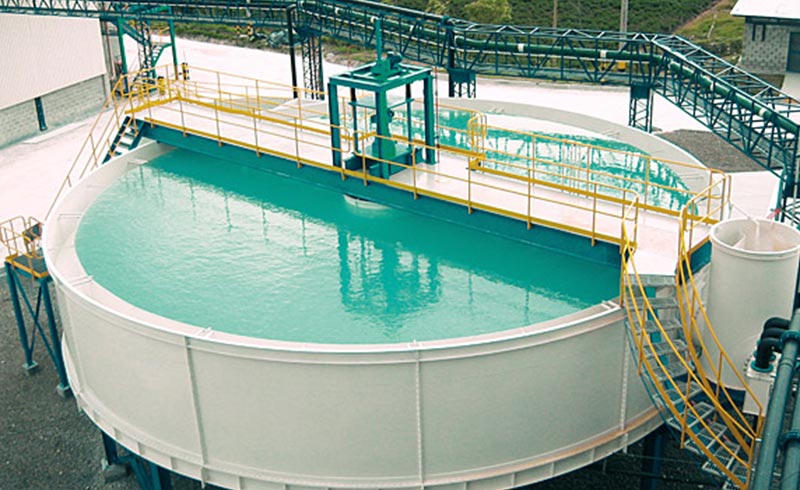

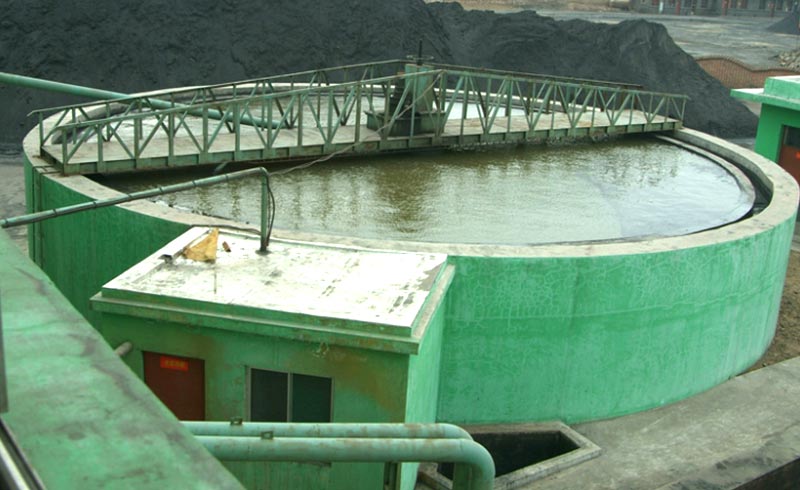

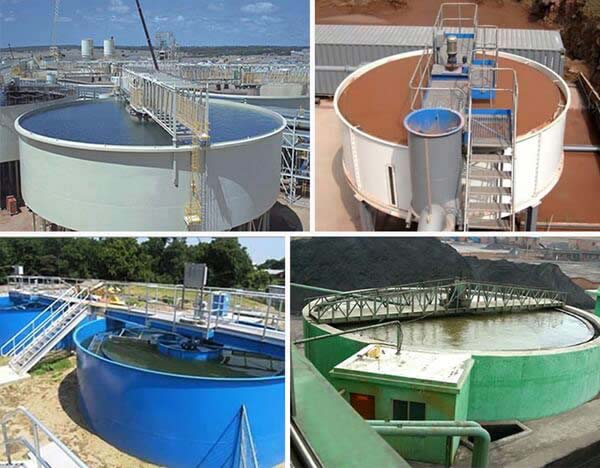

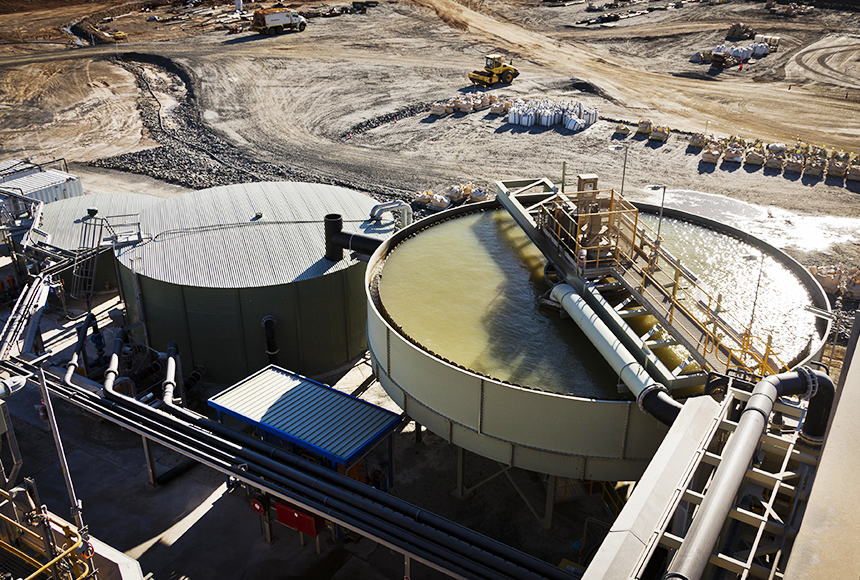

The high efficiency concentrator produced by our company is suitable for removing the water in the ore concentrate and the tailings in the ore beneficiation plant and it can concentrate the ore pulp from 20-30% to about 40-70%. This high efficiency concentrator is widely used in metallurgy, chemistry, coal, non-metal ore beneficiation, and environmental protection industry.


High Efficiency Concentrator Features:

  1. 1. Add the flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.

  2. 2. Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.

  3. 3. Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.

  4. 4. High-efficiency concentrator is equipped with a comprehensive automatic control device.

Product
presentation

The Reasons Why You Should Choose Our Products

We are a professional mining machinery manufacturer, engaged in the development and manufacture of mining equipment for nearly 40 years, we are experienced, can make your own solutions according to the site conditions provided by customers.

Hongxing adheres to the service concept of creating value for clients and satisfying clients’ needs, with high speed, advanced techniques, and sincere attitude.

Price List of High Efficiency Concentrator

We have a price list here. However, the price of the product is different. We need you to tell us your needs, such as product model, capacity, materials and other information. This way our sales staff can give you more detailed product information already price. You can contact us online or by email at info@hxjq.com. We will contact you as soon as possible!

Technical data

  • High Efficiency Concentrator
Specification Concentration pond (m) Deposit square(m2) Harrow part Motor Processing capacity (t/d) Total weight(t)
Model Specification Inner diameter Depth Pond degree Method Height(m) Rotation time(min/r) Driving Lifting
NZS-1 Φ1.8m 1.8 1.8 2.54 Manual 0.16 2 Y90L-6 1.1KW ---- 5.6 1.9
NZS-3 Φ3.6m 3.6 1.8 10.2 Manual 0.35 2.5 Y90L-6 1.1KW ---- 22.4 4.3
NZS-6 Φ6m 6 3 28.3 Manual 0.2 3.7 Y90S-4 1.1KW ---- 62 10.7
NZSF-6 Φ6m 6 3 28.3 Manual ---- 3.7 Y90S-4 1.1KW ---- 62 5.1
NZ-9 Φ9m 9 3 63.6 Auto 0.25 4.34 Y132S-6 3KW XWD0.8-3 0.8KW 140 8.5
NZS-9 Φ9m 9 3 63.6 Manual 0.25 4.34 Y132S-6 3KW ---- 140 7.5
NZS-12 Φ12m 12 3.5 113 Manual 0.25 5.28 JTC752A-44 5.2KW ---- 250 11.1
NZ-15 Φ15m 15 4.4 176 Auto 0.4 10.4J JTC752A-44 5.2KW Y112M-6 2.2KW 350 26.0
NZ-20 Φ20m 20 4.4 314 Auto 0.4 10.4 Y100L1-4 5.2KW Y112M-6 2.2KW 960 28.9
NZ-30 Φ30m 30 7.165 707 ---- 0.61 13.7 Y672A-44 5.2KW YCJ132-S 1.5KW ---- 36.6
NZS-45 Φ45m 45 4.633 1590 Manual ---- 20 Y672A-44 5.2KW YCJ160-S 2.2KW 515 54.4
NT-15 Φ15m 15 3.5 177 ---- ---- 8.4 Y132M2-6 5.5KW ---- 390 12.6
NQ-18 Φ18m 18 3.5 255 ---- ---- 10 Y132M2-6 5.5KW ---- 560 11.6
NQ-24 Φ24m 24 3.4 452 ---- ---- 12.7 Y160M-6 7.5KW ---- 1000 26.6
NQ-30 Φ30m 30 3.6 707   ---- 16 Y160M-6 7.5KW ---- 1570 30.9
NJ-38 Φ38m 38 4.9 1134 ---- ---- 10-25 JZT252-4 11KW Y160M-6 7.5KW 1600 63.3
NT-45 Φ45m 45 5.05 1590 Auto ---- 19.3 Y160L-6 11KW ---- 2400 66.8
NTJ-53 Φ53m 53 5.07 2202 ---- ---- 23.18 Y180L-6
15kw
---- 6250 89.1
NT-100 Φ100m 100 5.65 7846 ---- ---- 43 Y180L-6 15KW ---- 3030 214.9
  • High Efficiency Concentrator
Processing
capacity (t/d)
Model Specification
NZS-1 Φ1.8m 5.6
NZS-3 Φ3.6m 22.4
NZS-6 Φ6m 62
NZSF-6 Φ6m 62
NZ-9 Φ9m 140
NZS-9 Φ9m 140
NZS-12 Φ12m 250
NZ-15 Φ15m 350
NZ-20 Φ20m 960
NZ-30 Φ30m ----
NZS-45 Φ45m 515
NT-15 Φ15m 390
NQ-18 Φ18m 560
NQ-24 Φ24m 1000
NQ-30 Φ30m 1570
NJ-38 Φ38m 1600
NT-45 Φ45m 2400
NTJ-53 Φ53m 6250
NT-100 Φ100m 3030

For customization, please contact us.

more

Flotation Machine

Energy Conservation Highly Precise Separation Nice Flotation Separation Effect Durable Impellers
Flotation Machine
more

Shaking Table

High Concentration Ratio High Separation Efficiency Easy Operation Less Energy Consumption
Shaking Table
more

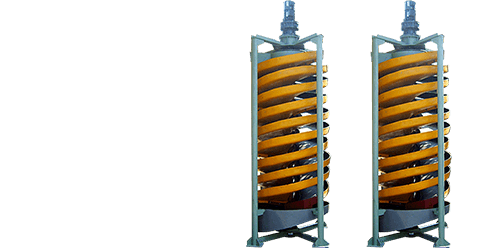

Spiral Chute

Small Occupation Area Big Handling Capacity Light Weight Easy Operation
Spiral Chute
Application range:

metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc
