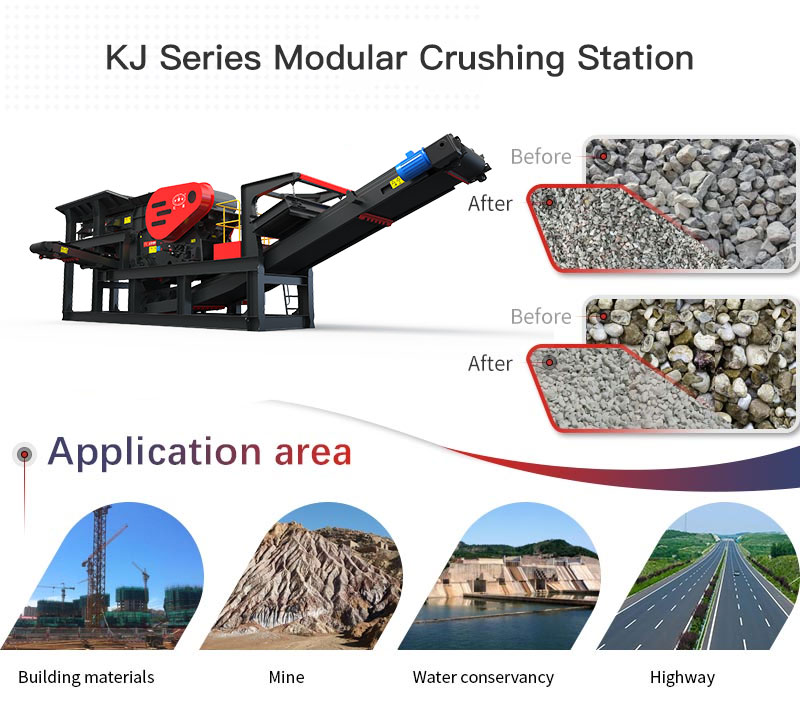

Applied materials: KJ Series Modular Crushing Station can process Gold/Iron/Copper Ore, building materials, quartz, basalt, granite.
“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

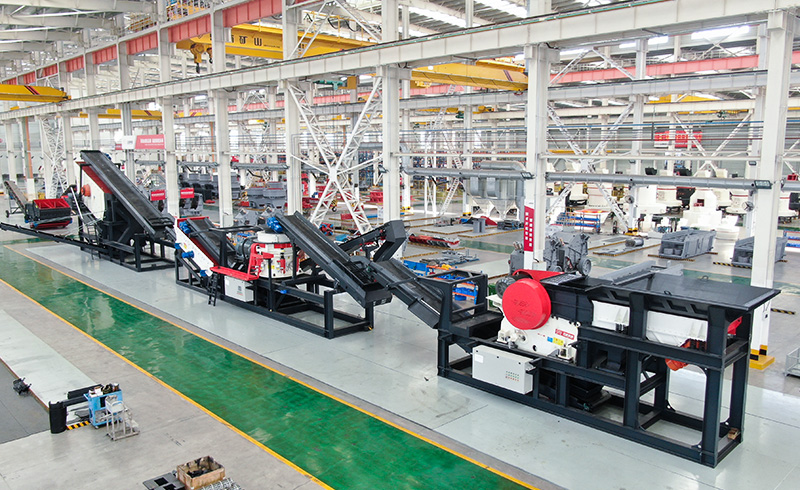

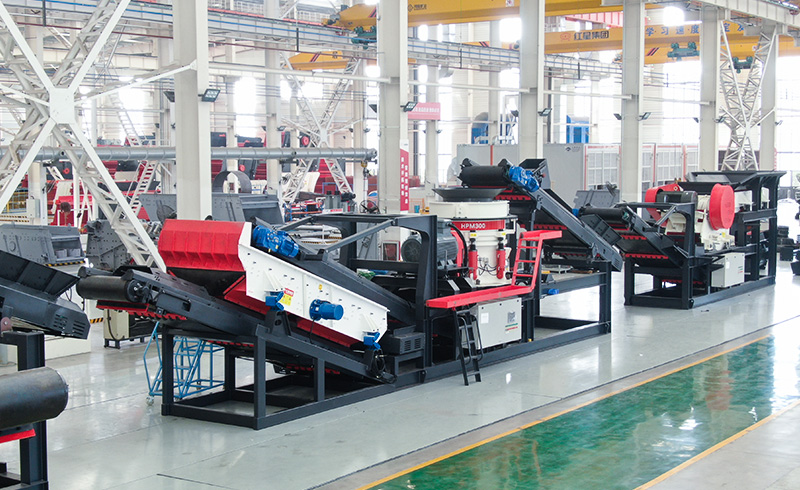

HXJQ KJ series module crushing station is a mobile module crushing station developed by HXJQ Machinery according to the current market situation.
The equipment has a high degree of integration. After simple lifting, it can be quickly put into production, and the on-site installation is convenient and fast.Compared with the decentralized working environment of the fixed production line, the modular and integrated design makes the equipment layout more flexible and the site more concise and reasonable.
High quality main machine : The high-performance main machine is produced by the latest industry technology, with high efficiency, high output, few failures, convenient operation and maintenance, and stable and reliable operation.
Free concrete foundation : The frame structure layout saves the cost and time of making concrete foundation on site for each crushing and screening equipment, and the equipment transfer is more convenient and flexible, avoiding repeated investment, and greatly reducing the preparation time and investment in the early stage of production.
Humanized maintenance space : The open design is equipped with a high-quality maintenance platform, which fully considers the maintenance space and convenience of operators, making equipment maintenance more convenient.
Convenient transportation : The whole machine can be unfolded when working, and can be easily folded and folded during transportation, minimizing disassembly and assembly, and meeting the smooth transportation of domestic highways.
| Series | Standard Model | On board equipment | On board equipment | Processing Capability (t/h) | Transport dimensions (mm) |

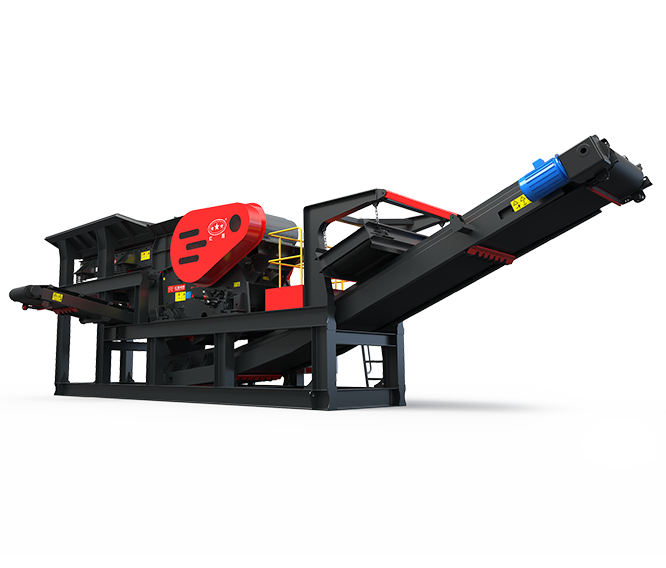

| JAW CRUSHER | KJ98 | GZDT9538 | HDX98 | 90-350 | 12750×3020×3850 |
| KJ110 | GZDT1145B | HDX110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | KJ1213 | GZDT9538 | C11213 | 80-320 | 12970×3020×3920 |
| KJ1316 | GZDT1145B | C11316 | 100-400 | 13290×3050×4080 | |

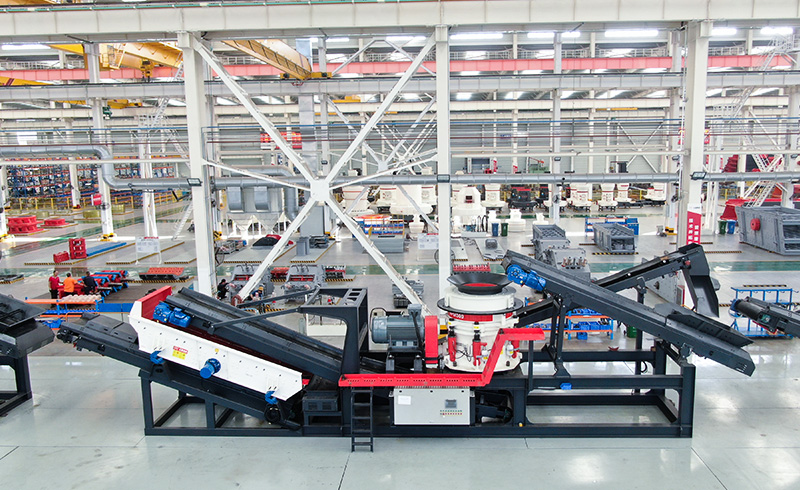

| CONE CRUSHING STATION | KJ300 | - | HPM300C1 | 60-280 | 15650×3270×3780 |
| KJ250 | - | SC250F1 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | - | HVI0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | - | HVI1040 | 120-284 | 15400×2920×3970 | |

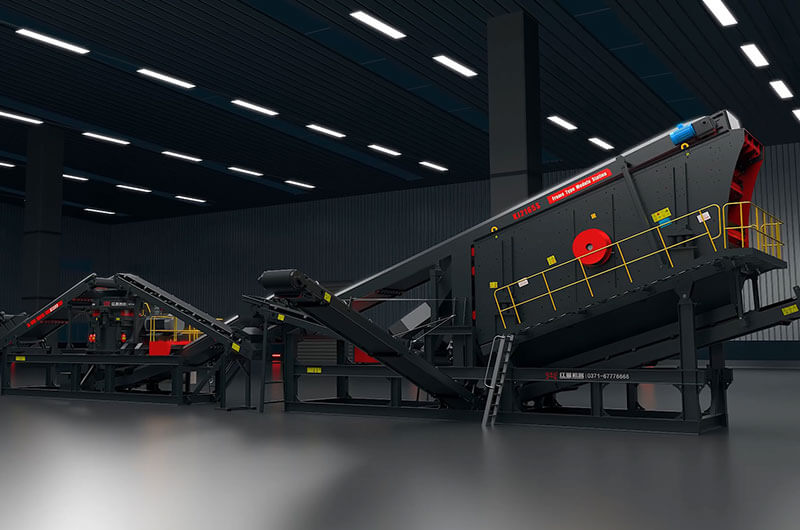

| SCREENING STATION | KJ1865S-3 | - | 3HX1865 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | - | 4HX2165 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Series | Standard Model | Processing Capability (t/h) |
Transport dimensions (mm) |
| JAW CRUSHER | KJ98 | 90-350 | 12750×3020×3850 |
| KJ110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | C11213 | 80-320 | 12970×3020×3920 |
| KJ1316 | 100-400 | 13290×3050×4080 | |
| CONE CRUSHING STATION | KJ300 | 60-280 | 15650×3270×3780 |
| KJ250 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | 120-284 | 15400×2920×3970 | |
| SCREENING STATION | KJ1865S-3 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
