MP Series Modular Factory

MP Series Modular Factory

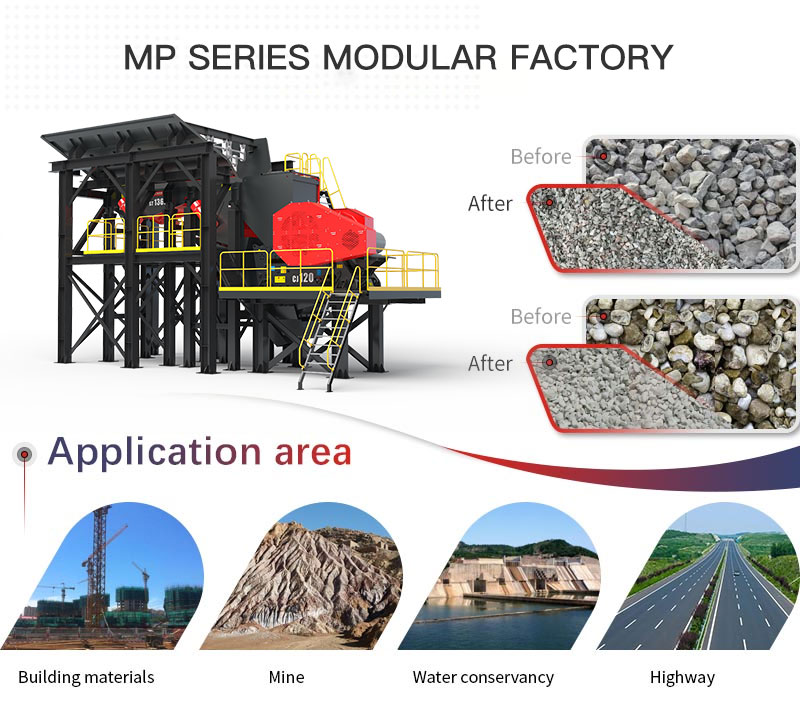

Application fields: Used in mining, building materials, transportation, energy, chemical and other industries.

  • Maximum Feed Size:700mm
  • Processing capacity: 100-400t/h

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

MP module factory is a new all-around solution for aggregate crushing and screening developed by Hongxing Group according to the current domestic and overseas market environment. It is the latest international design concept. No matter your raw materials, site conditions, finished product requirements or production cycle, the design concept of MP factory combined with the high quality main machine of Hongxing Group can meet your budget and specific requirements.

MP Series Modular Factory Features:

  1. Short construction period : All modular steel structures are produced in the factory, and the production is fast. Only a small amount of concrete foundation is needed on site, which shortens the construction period and realizes rapid production;

  2. Low investment cost : All structures are fabricated in the factory, and only on-site installation is required, saving the cost of personnel organization and leftover waste material for on-site fabrication;

  3. Convenience and flexibility : The module structure basically adopts the bolting mode, which is convenient for on-site assembly and greatly shortens the construction period. This structure is also easy to be loaded into containers for transportation and reduces freight expense

Product
presentation

Technical data

  • MP Series Modular Factory
Production line code Maximum Feed Size
(mm)
Capacity (t/h) Main Configuration Total Power
(kw)
Floor space
(m)
Note
0-5mm 0-20mm 0-32mm Primary Crushing Secondary/tertiary Crushing Screening
Hard rock MPH1 500 / 120 150 MU-HDX86 MU-SC160 MU-HX2165 373 45×45
/ 130 160 MU-HDX86 MU-SC160
MU-HVI0926
MU-HX1545
MU-HX2165
717 50×70 plastic
100 / / MU-HDX86 MU-SC160
MU-VSIA7500
MU-HX1855
MU-HX2465
859 50×70 Sand making
MPH2 500 / 180 220 MU-CJ96 MU-SC250 MU-HX2465 490 50×50
/ 190 230 MU-CJ96 MU-SC250
MU-VSIA7400
MU-HX2165
MU-HX2465
963 50×70 plastic
200 / / MU-CJ96 MU-SC250
MU-VSIA7800
MU-HX2165
MU-HX3075
1367 50×70 Sand making
MPH3 600 / 230 350 MU-CJ106 MU-SC315 MU-HX2765 603 60×60
/ 240 360 MU-CJ106 MU-SC315
MU-VSIA7630
MU-HX2165
MU-HX3065
1260 60×70 plastic
MPH5 700 / 400 520 MU-CJ120 MU-SC315S
2xMU-SC250
MU-HX2465
2×MU-HX2165
1290 70×80
Medium hard
Soft rock
MPM1 500 / 120 160 MU-HDX86 MU-CI1110 MU-HX1855 363 45×45
MPM2 500 / 160 210 MU-CJ96 MU-CI1213 MU-HX2165 449 50×50
MPM3 600 / 210 300 MU-CJ106 MU-CI1316 MU-HX2465 535 60×60
MPM4 700 / 320 400 MU-CJ120 MU-CI1521 MU-HX3085 750 60×70

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

  • MP Series Modular Factory
Production line code Maximum Feed Size
(mm)
Capacity
(t/h)
0-5mm 0-20mm 0-32mm
Hard rock MPH1 500 / 120 150
/ 130 160
100 / /
MPH2 500 / 180 220
/ 190 230
200 / /
MPH3 600 / 230 350
/ 240 360
MPH5 700 / 400 520
Medium hard
Soft rock
MPM1 500 / 120 160
MPM2 500 / 160 210
MPM3 600 / 210 300
MPM4 700 / 320 400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
