Stone Crushing Plant

Stone Crushing Plant

Main Products: stone crusher, jaw crusher, cone crusher, etc

  • Processing capacity:5-1000t/h
  • Feeding size:125-250mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

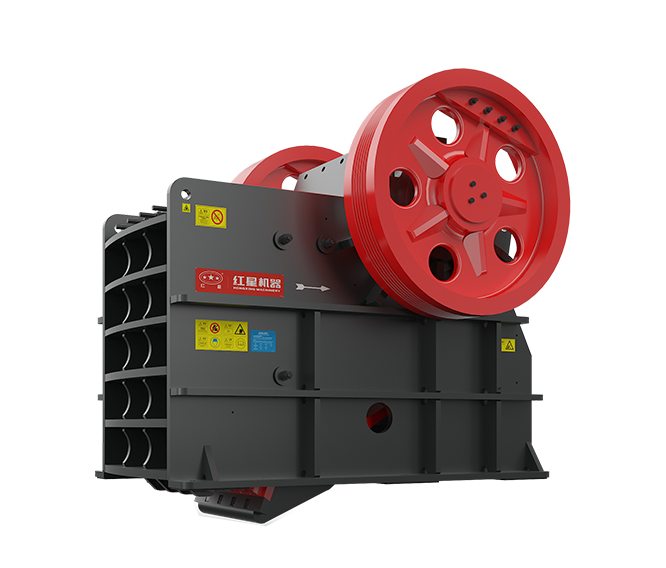

The stone crushing plant can be used at the primary, secondary or tertiary stage, depending on the application. They are ideal for hard, tough and abrasive materials.PE400×600, PE600×900, PE900×1200 are the popular models in the production line

PE-400*600
400*600mm inlet size
340mm max. feeding size
40-100mm outlet size range
16-64t/h processing capacity
PE-600*900
600*900mm inlet size
500mm max. feeding size
65-160mm outlet size range
50-160t/h processing capacity
PE-900*1200
900*1200mm inlet size
750mm max. feeding size
95-165mm outlet size range
220-380t/h processing capacity

stone production line applications and applicable materials

Stone Crushing Plant Features:

  1. 1. Versatile production solution options.

  2. 2. Remarkable savings in energy and maintenance costs.

  3. 3. Excellent energy efficiency.

  4. 4. Fuel efficient and reliable crushing for the best performance.

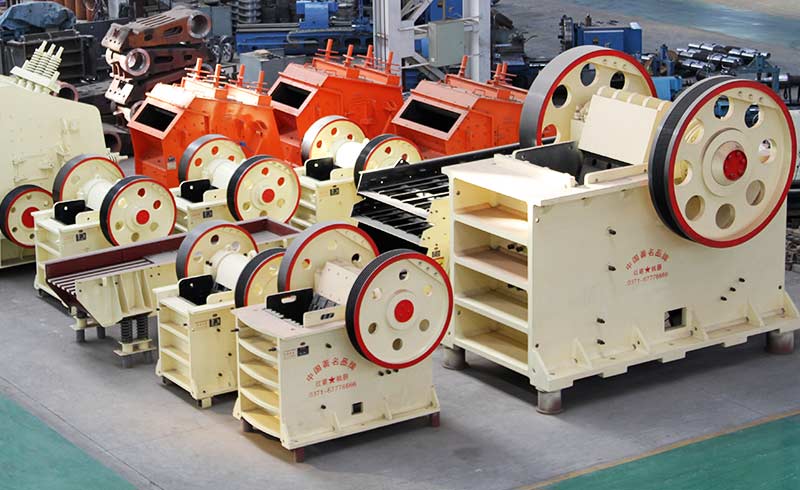

stone crushing plant production site
the company produces a variety of models, if you need to customize, please contact us.

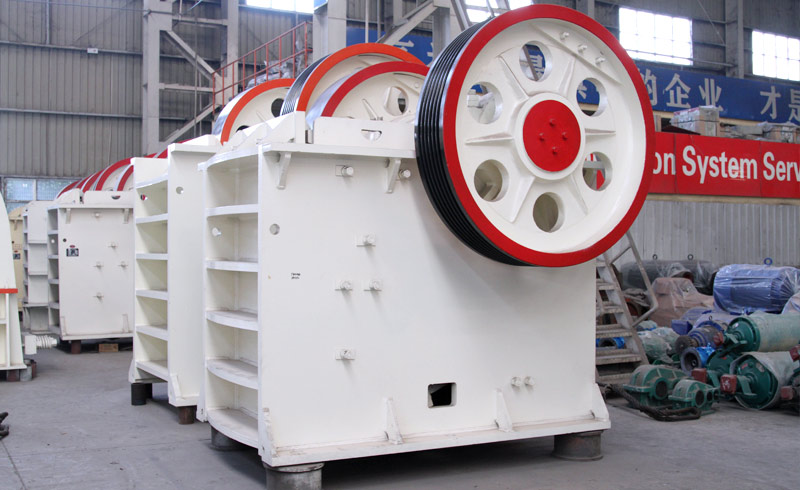

stone crushers
Product
presentation

Product Price

Different types and sizes of the stone crushing plant have different prices. The price is generally from thousands of dollars to ten thousand or hundreds of thousands of dollars. If you need our latest quotation, you can tell us your specific type and quantity after deciding its size. We will then send you the price list. You can also send an email to info@hxjq.com to consult us.

After-sales Service

We have a perfect one-stop service for pre-sale, sale, and after-sales. Now, if you have any questions about the product, you can consult online customers for free. We are available 24 hours a day, 7 days a week. Or you can leave your contact information and project requirements, such as materials, production, etc., in the message board below. We will have a one-on-one service, contact us!

Technical data

  • PE/PEX Jaw Crusher
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
  • PE/PEX Jaw Crusher
Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-64
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105



For customization, please contact us.
