Sand Maker

Sand Maker

Application fields:metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

  • Processing capacity:12-520t/h
  • Max.Feeding size:35-50mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

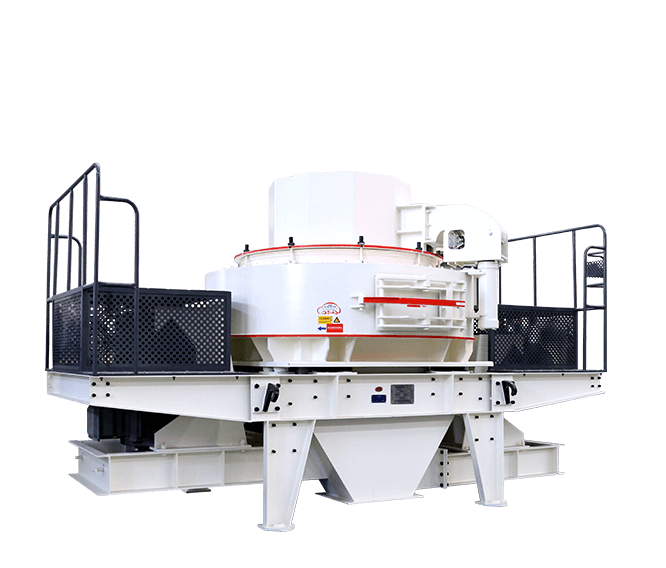

The sand maker is the necessary equipment for the artificial sand. It adopts the principle and technology of the “stone hitting stone” crusher, which makes the finished product in excellent grain shape, reasonable gradation and improved production efficiency, especially suitable for artificial sand making and tone shaping.

It is widely used in many fields such as metallurgy, mining, building materials, construction, highways, etc., and its value for application is excellent enough to create high economic benefits for customers.

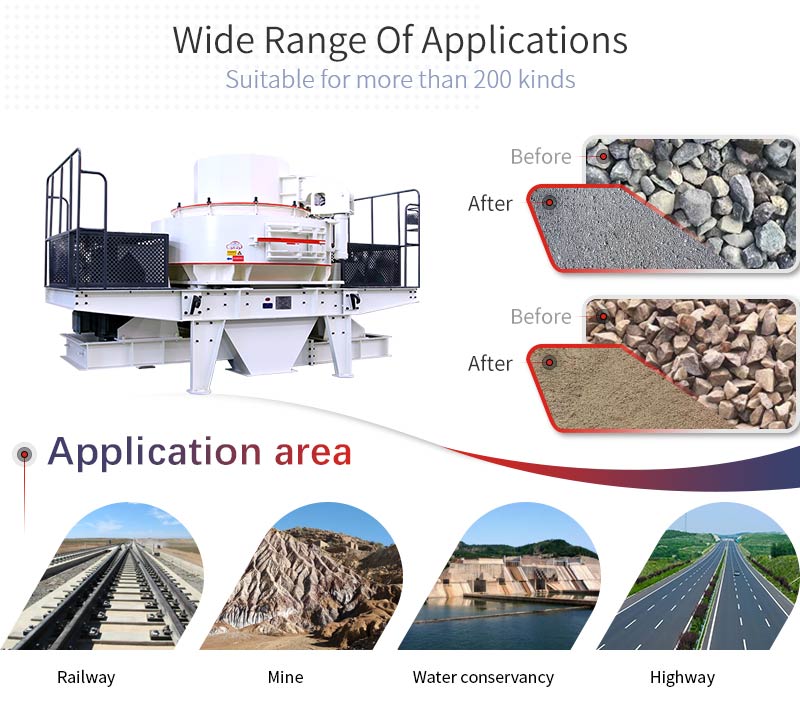

sand maker applications and applicable materials

Sand Maker Features:

  1. 1. The sand maker has a simple structure, unique bearing, and advanced spindle design, which makes the sand maker have the characteristics of heavy load and high-speed rotation.

  2. 2. The sand maker has a good shaping function for the ore, and the finished material has a more uniform particle size.

  3. 3. With the functions of high efficiency and energy saving, high wear resistance, the long service life of wearing parts.

  4. 4. During the production process, the stone material can form a protective bottom layer, and the body is wear-free and durable.

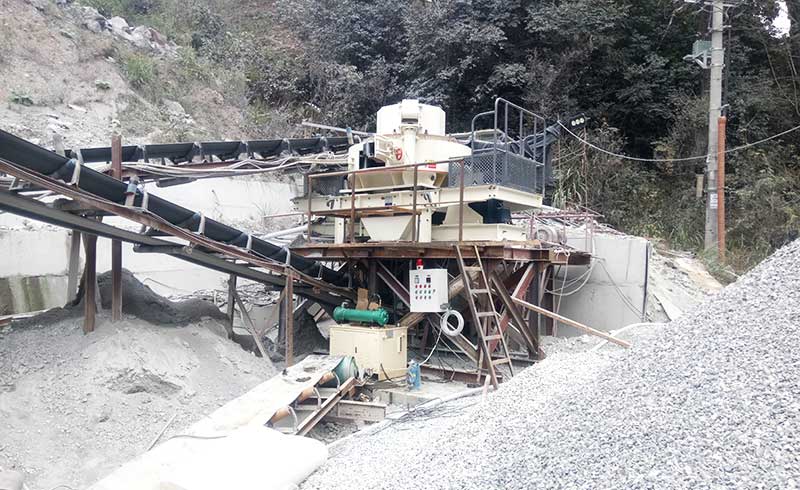

sand maker production site

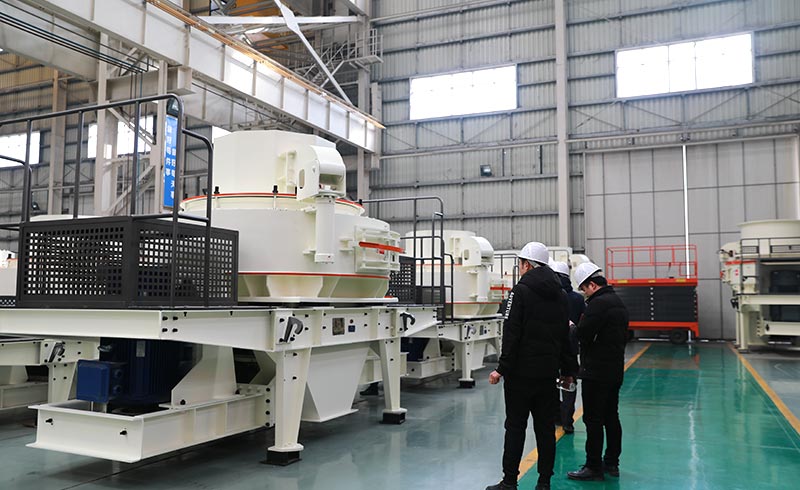

customers visit the factory
engineers design engineering solutions for customers
Product
presentation

Investment and Return

Our company's customers come from different countries and regions in the world. A customer from Zimbabwe visited our company twice to conduct field visits and purchase sand making machines made by our company. The customer believes that the sand making machine produced by our company adopts the better impact angle design of the crushing chamber material, and the wearing parts are not easy to wear and consume, which directly reduces the use cost of the production equipment. Save customers 20% of their budget. The customer is very satisfied with the product.

Technical data

  • Sand Maker
  • VSI Sand Maker
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
HX-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140 HXVSI-1145 HXVSI-1150
Capacity
(t/h)
Feed both
at center
 and sides
120-180 200-260 300-380 450-520 500-610 520-650
Feed at
center
60-90 100-130 150-190 225-260 245-355 255-365
Max.feeding
size(mm)
Soft
material
35 40 45 50 50 50
Hard
material
30 35 40 40 45 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310 1150-1300 1150-1300
Double Motor
power(kw)
4P   110 4P   180 4P   264 4P   400 4P   400 4P   500
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5100×2700×3300 5500×2700×3300 5500×2700×3300
Power supply 380V 50HZ
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
 switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
 tank heater
2KW
  • Sand Maker
  • VSI Sand Maker
Model
specification
Max.feeding
size(mm)
Capacity
(t/h)
HX-06 35 12-30
HX-07 45 25-55
HX-09 50 55-100
HX-10 60 100-160
Model Capacity
(t/h)
Feed both
at center
 and sides
Feed at
center
HXVSI-7611 120-180 60-90
HXVSI-8518 200-260 100-130
HXVSI-9526 300-380 150-190
HXVSI-1140 450-520 225-260
HXVSI-1145 500-610 245-355
HXVSI-1150 520-650 255-365

For customization, please contact us.
