Quarry Machine

Quarry Machine

Major equipment: jaw crusher, impact crusher, vibrating feeder, vibrating screen, belt conveyor, sand washing machine.

  • Processing Capacity: 50-650t/h
  • Feed opening: 35-1800mm

40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The quarry machine, also named gravel production line or stone production line. It mainly consists of the vibrating feeder, jaw crusher, impact crusher, cone crusher, vibrating screen, belt conveyor, etc. In general, the output is 50-800t/h. It can be equipped with other machines and customized according to clients’ requirements.

Quarry Machine Features:

  1. Quarry machine including versatile products meets different objectives of customers

  2. High crushing capacity and wide range applications

  3. Good shapes of final products, high efficiency, and energy saving

  4. Highly engineered and precisely tested machine, ideal for owner-operators

Product
presentation

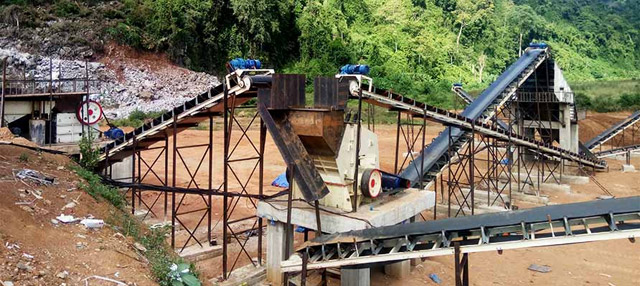

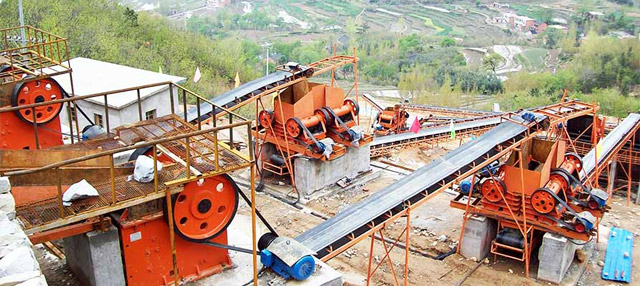

Quarry Machine Production Flow

Stone is evenly sent into the jaw crusher by the vibrating feeder to be crushed primarily. The primarily crushed material is sent into the impact crusher by the belt conveyor to be crushed further. The finely crushed material is sent into the vibrating screen to be screened. The screened material with the required particle size is just the final product while the unqualified one will be sent back to the impact crusher to be processed again, forming a closed cycle system.

After-sales Service

Installation: we provide you with free installation service. We have a technical installation group with much experience.

Training: after the installation, our technical people will train and assist clients about the operation on site.

Consultation: after the machines have been put into production fluently, we’re ready to help you solve any difficulties.

Time Guarantee: After your consultation, we will reply you within 24 hours.

Technical data

  • Quarry Machine
Model HX3S184F210 HX3S185F214 HX3S216F315 HX3S184HD1110 HX3S216HD1315
Transportation Length(mm) 14600 15000 16000 16000 16000
Transportation Width(mm) 2800 2900 3100 3100 3100
Transportation Height(mm) 4400 4400 4550 4400 4550
Maximum Length(mm) 16000 16000 17000 16500 17000
Maximum Width(mm) 3800 3900 4600 3900 4600
Maximum Height(mm) 6500 6500 6900 6800 6900
Weight(t) 35 41.5 54 42 48.5
Tyre Configuration biax fitted triaxial fitted triaxial fitted triaxial fitted triaxial fitted
Tire Configuration PF-1210 PF-1214 PF-1315 HD1110 HD1315
Discharging belt conveyor B650×15M×2 B800×15M×2 B1000×15M×2 B800×15M×2 B1000×15M×2
Belt conveyor for re-crushing material B650×14M B800×14M B1000×16M B800×16M B1000×16M
Conveyor Belt for final products B500×15M×2 B500×15M×2 B650×15M×2 B500×15M×2 B650×15M×2
Under vibrating screen B800×7.5M B800×7.5M B1000×9M B800×8M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS1854 3YZS2160 3YZS1848 3YZS2160
  • Quarry Machine
Model Transportation
Length(mm)
Transportation
Width(mm)
HX3S184F210 14600 2800
HX3S185F214 15000 2900
HX3S216F315 16000 3100
HX3S184HD1110 16000 3100
HX3S216HD1315 16000 3100

For customization, please contact us.

more

Cone Crushers

Safe and Reliable Operation Adjustable Final Products Size High Performance High Productivity
Cone Crushers
more

Crushing and screening

Better Adaptability High Efficiency Low Transport Cost High Productivity
Crushing and screening
more

Quarry Equipment

A Wide Range of Application Adopting the World-level Techniques Reasonable Project Design Low Investment
Quarry Equipment

SOLUTION

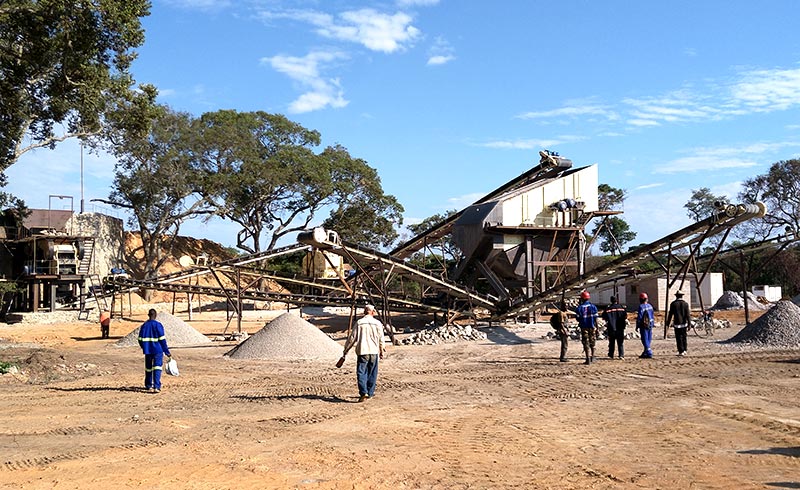

70-180t/h Rock Crushing Plant In Uganda

70-180t/h Rock Crushing Plant In Uganda

The rock crushing plant can be used to crush once, twice and finely crushed more than 200 kinds of rough stones such as iron ore, gold ore, copper ore, granite, basalt, limestone, rock, concrete, aggregate, gravel, dolomite and quartz. It is widely used in mining, quarry, construction, road and othe

MORE +

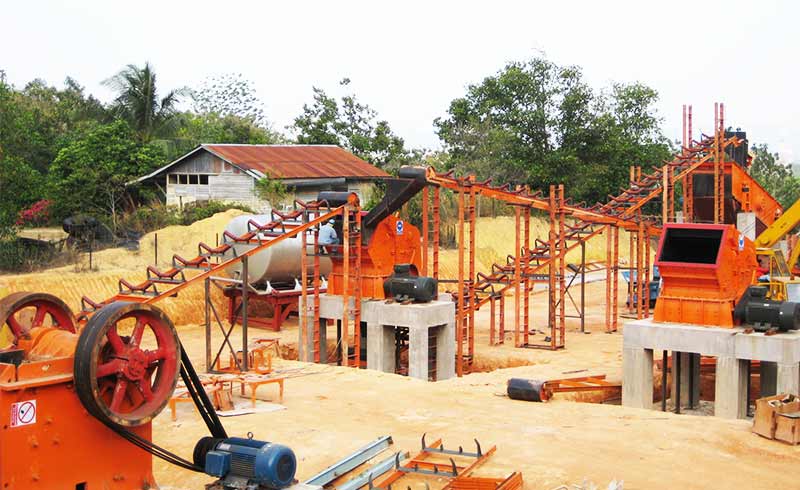

Stone Crusher In Mexico

Stone Crusher In Mexico

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +

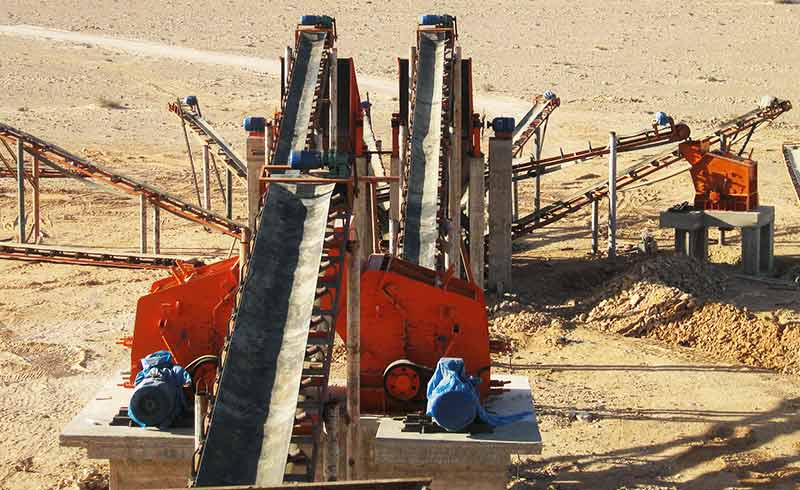

Stone Crusher Plant In Ethiopia
